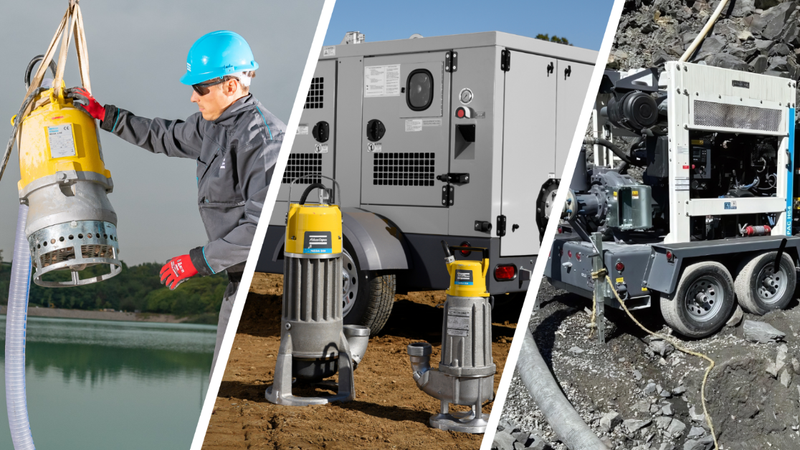

Atlas Copco WEDA D80H Submersible Dewatering Pump
HP31
$14,180.00
SKU
3081620900
Downloads & Resources
- Processed next business day
- Authorized dealer
- Service support
The Atlas Copco WEDA D80H is the high-head version of the 31 HP WEDA D80 family — 4" NPT discharge optimized for very high vertical lifts in deep-shaft mining and tunneling.
Key Features
- 31 HP submersible motor — oil-filled, IP68
- 670 GPM max flow / 247 ft max head
- 4" NPT discharge connection
- 0.47" max solid pass-through — handles trash water
- Hardened impeller and stainless-steel wear plate
- Stainless-steel handle, double mechanical seal
- Atlas Copco's US SKU description specifies CSA.
Ideal Applications
- Construction site dewatering
- Mining and tunneling water removal
- Flood and basement pump-out
- Wellpoint and pond transfer
- Industrial sump and process water
Specifications
| Model | WEDA D80H |
|---|---|
| Impeller / Head Class | high-head |
| Horsepower | 31 HP |
| Max Flow | 670 gpm |
| Max Head | 247 ft |
| Shaft Speed | 3500 rpm |
| Rated Output | 23 kW |
| Max Power Input | 26 kW |
| Discharge | 4" NPT |
| Max Solids | 0.47" |
| Weight | 389 lb |
| Height | 38.6 in |
| Diameter | 20.9 in |
| Warranty | 12 months from start-up / 18 months from receipt (whichever comes first) |
About the WEDA D80H
The Atlas Copco WEDA D80H pumps clean or dirty drainage water where the discharge route requires high lift. Its 31 HP motor is paired with higher-head hydraulics than the D80N, making it a model to consider for demanding mine, quarry and construction drainage. The submersible pump works directly in the water being removed, without a surface-pump priming arrangement. Its 4 inch discharge and 389 lb weight also need room and handling access at the installation, alongside a discharge line matched to the required flow.
How the WEDA D80H compares
The D80H reaches 247 ft maximum head, compared with 205 ft for the smaller 18 HP WEDA D70H. The alternative WEDA D80N shares its 31 HP motor rating but has a lower 147 ft head ceiling and a higher flow ceiling. Choose between them in the WEDA pump range by the flow each delivers at your required head.
Questions about the WEDA D80H
What are its max head and flow?
The published limits are 247 ft maximum head and 670 gpm maximum flow. Maximum flow and maximum head are not reached at the same time, so check the curve for the flow at your required head.
How does flow compare with WEDA D80N?
The D80N reaches 1,560 gpm maximum flow, compared with 670 gpm for the D80H. Both are 31 HP, but the D80H trades that higher flow ceiling for a higher head ceiling.
How heavy is it, and what discharge does it use?
The D80H weighs 389 lb and uses a 4 inch discharge. Check access for placing the pump and routing the discharge line.
Why Buy From A1 Compressor Warehouse
- Authorized Atlas Copco dealer — full factory warranty support.
- Free application sizing — call (803) 526-5797 or email sales@a1compressorwarehouse.com before you order.
- Same-day quotes on requests received before 3 PM ET. Next-business-day order processing.
- Direct-to-consumer pricing — no middleman markup.
Specifications
| Brand | Atlas Copco |
|---|---|
| Model # | WEDA D80H |
| Mfr Part # | 3081620900 |
| Horsepower | 31 HP |
| Weight | 389 lb |
| Warranty | 12 months from start-up / 18 months from receipt (whichever comes first) |
Shipping & Returns
We process most orders within one business day. Freight items ship by motor carrier — we'll coordinate delivery for residential and limited-access addresses.
- Nationwide shipping. Call (803) 526-5797 for a freight quote on large equipment.
- All sales final. Please confirm fitment, specifications, and compatibility before ordering — contact us if you need a sizing consult.
- Manufacturer warranty applies — see spec sheet or contact us with your serial number.
Side by side
Compare WEDA dewatering pumps
WEDA D80H next to nearby dewatering models we carry
| Model | Max flow | Max head | Power | Phase | Max solids | Discharge | Weight |
|---|---|---|---|---|---|---|---|
| WEDA D70L Lightest | 1,230 gpm | 129 ft | 18 HP | 3-phase | 0.39 in | 6 in | 244 lb |
| WEDA D80SH Highest head | 500 gpm | 355 ft | 31 HP | 3-phase | 0.47 in | 3 in | 478 lb |
| WEDA D80HYou're viewing | 670 gpm | 247 ft | 31 HP | 3-phase | 0.47 in | 4 in | 389 lb |
| WEDA D80N Most flow | 1,560 gpm | 147 ft | 31 HP | 3-phase | 0.47 in | 6 in | 389 lb |
Atlas Copco published 60 Hz figures. Each bar is scaled to the largest value for that column in this table. Max flow and max head are not reached at the same time, so check the pump curve for your duty point.
