Atlas Copco WEDA D80SH submersible dewatering pump
Atlas CopcoModel #: WEDA D80SH

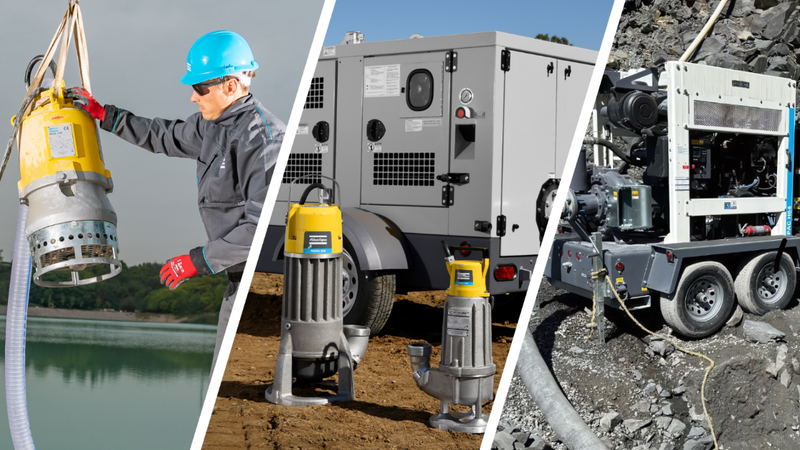

Atlas Copco WEDA D80SH Submersible Dewatering Pump

HP31PhaseThree-Phase
$18,030.00
SKU 3081621492
Orders processed next business day.

Ship dates vary by vendor and can change.

Preferred for freight or configured items

Downloads & Resources

Download Spec Sheet (PDF)
Financing available — learn more
  • Processed next business day
  • Authorized dealer
  • Service support

The Atlas Copco WEDA D80SH is the super-high-head version of the 31 HP WEDA D80 family — 3" NPT discharge tuned for extreme vertical lift in the deepest dewatering applications. Designed for mining, deep-shaft, and high-rise construction.

Key Features

  • 31 HP submersible motor
  • 500 GPM max flow / 355 ft max head
  • 3" NPT discharge connection
  • 0.47" max solid pass-through
  • Atlas Copco's US SKU description specifies CSA.
  • Offered configuration: 460 V, 60 Hz (SKU 3081621492).

Ideal Applications

  • Construction site dewatering
  • Mining and tunneling water removal
  • Flood and basement pump-out
  • Wellpoint and pond transfer
  • Industrial sump and process water

Specifications

Model WEDA D80SH
Impeller / Head Class super high-head
Horsepower 31 HP
Max Flow 500 gpm
Max Head 355 ft
Shaft Speed 3500 rpm
Rated Output 23 kW
Max Power Input 26 kW
Discharge 3" NPT
Max Solids 0.47"
Weight 478 lb
Height 41.7 in
Diameter 20.9 in
Voltage 460V
Phase Three-Phase
Warranty 12 months from start-up / 18 months from receipt (whichever comes first)
