Atlas Copco WEDA D70L submersible dewatering pump
Atlas CopcoModel #: WEDA D70L

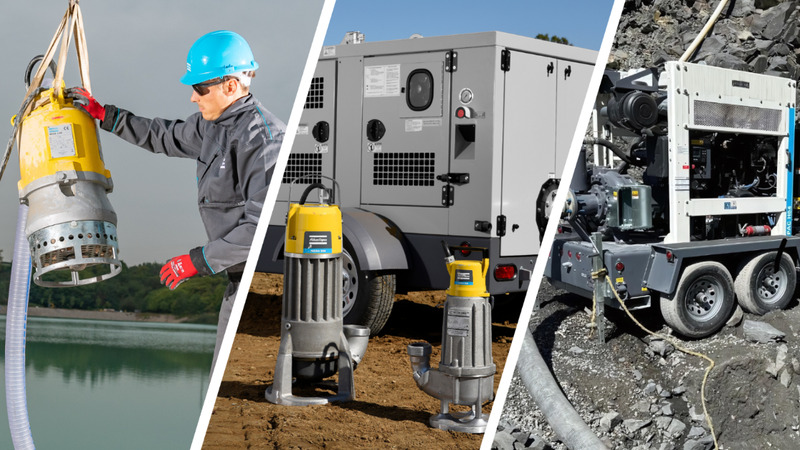

Atlas Copco WEDA D70L Submersible Dewatering Pump

HP18PhaseThree-Phase
$10,770.00
SKU 3081620944
Orders processed next business day.

Ship dates vary by vendor and can change.

Preferred for freight or configured items

Downloads & Resources

Download Spec Sheet (PDF)
Financing available — learn more
  • Processed next business day
  • Authorized dealer
  • Service support

The Atlas Copco WEDA D70L is the low-head, high-flow version of the 18 HP WEDA D70 family. 6" NPT discharge for moving large volumes of water on flood-recovery, pond, and large-site dewatering work.

Key Features

  • 18 HP submersible motor
  • 1230 GPM max flow / 129 ft max head
  • 6" NPT discharge connection
  • 0.39" max solid pass-through
  • Atlas Copco's US SKU description specifies CSA.
  • Offered configuration: 460 V, 60 Hz (SKU 3081620944).

Ideal Applications

  • Construction site dewatering
  • Mining and tunneling water removal
  • Flood and basement pump-out
  • Wellpoint and pond transfer
  • Industrial sump and process water

Specifications

Model WEDA D70L
Impeller / Head Class low-head / high-flow
Horsepower 18 HP
Max Flow 1230 gpm
Max Head 129 ft
Shaft Speed 3500 rpm
Rated Output 13.4 kW
Max Power Input 15 kW
Discharge 6" NPT
Max Solids 0.39"
Weight 244 lb
Height 37.1 in
Diameter 14.6 in
Voltage 460V
Phase Three-Phase
Warranty 12 months from start-up / 18 months from receipt (whichever comes first)
