Mattei Compressor Parts
A1 Compressor Warehouse is an authorized Mattei distributor supplying genuine parts for Mattei rotary vane compressors. This is the full parts listing — the factory service kits you order on an interval, plus individual components such as solenoid valves and assemblies. If you already know which service kit you need, jump straight to Kit A, Kit B, Kit C or Kit D.
How Mattei service kits are organised
Mattei packages routine service into lettered kits, and knowing which letter you need saves a lot of back-and-forth. In broad terms, the earlier letters cover the light, frequent services — filters and the consumables that go with them — and the later letters step up to the major intervals that include the larger service items. The exact contents vary by model family, so the kit letter alone is not enough: match it to your unit.
Find the right kit for your unit
Kits are listed by model family — ERC, RVD and RVDi, RVX and RVXi, Blade, Optima, Maxima and the AC series — and each kit carries its Mattei part number (the IF57… reference) in the product title. Work from your compressor's model and serial number rather than horsepower alone, because Mattei changed kit contents across production runs on several ranges. If you send us the nameplate details we will confirm the correct kit before you order.
Why the service interval matters on a vane compressor
Mattei's sliding vane airend is a long-life design — Mattei designs it for 100,000 hours — but that longevity assumes the oil and filtration are changed on schedule. The vanes ride on a lubricating film; degraded oil or a bypassing filter is what turns a routine service into an airend job. Staying on the factory interval with factory kits is the cheapest maintenance decision available on these machines.
Genuine OEM parts with full warranty support and nationwide shipping. Looking for Mattei lubricants or a complete compressor rather than a service kit? Browse Mattei lubricants or the full Mattei compressor range. Not sure what your unit takes — send us the model and serial number and we will identify it and quote the same day.
Find the right Mattei maintenance kit
Mattei service kits are matched to your compressor model and the hour count of the service. Kit A is the 2,500-hour kit on most models; larger services add Kits B, C and D. Pick your model below to see its kits and Mattei part numbers. Not sure of your model? It's on the nameplate on the compressor frame. Call us with the nameplate details and we'll confirm the kit.
All Mattei kits by model
Blade 4 / 5 / 7 (belt drive)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | 2,500 hours | 30002021 (was IF57A25252) | View kit |
| B | 5,000 hours | 30002022 (was IF57A25253) | Request this kit |
Blade 11 (belt drive)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | 2,500 hours | 30002310 (was IF57B25252) | View kit |
| B | 5,000 hours | 30002311 (was IF57B25253) | View kit |
Blade 8-12 / 8i / 12i
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| Maintenance | 2,500 hours | 30005400 | Request this kit |
| Thermostat | 5,000 hours | 30005402 | Request this kit |
Shares kits with RVD 7-11.
Blade 15 / 18 / 22 (incl. i, direct drive)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002191 (was IF57A26040) | View kit |
| B | Kit B, 5,000 hours | 30002192 (was IF57A26041) | View kit |
| C | Kit C, 10,000 hours | 30002193 (was IF57A26042) | View kit |
ERC 4-5 / 504-505, ER 4-5, AC 4-5
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002290 (was IF57B24853) | View kit |
| B | Kit B, 5,000 hours | 30002291 (was IF57B24854) | View kit |
| C | Kit C, 10,000 hours | 30002078 (was IF57A25785) | View kit |
| D | Kit D, 20,000 hours | 30002293 (was IF57B24856) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
ERC 7-11 / 507-515, AC 7-11
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 20010579 (was IF57B24861) | View kitSame Mattei part, listed under Optima 11 |
| B | Kit B, 5,000 hours | 30002294 (was IF57B24862) | View kitSame Mattei part, listed under Optima 11 |
| C | Kit C, 10,000 hours | 30002081 (was IF57A25789) | View kitSame Mattei part, listed under Optima 11 |
| D | Kit D, 20,000 hours (AC 7-11 only) | 30001896 (was IF57A24872) | View kitSame Mattei part, listed under Optima 11 |
Same kits as Optima 11. Kit D applies to AC 7-11 only.
ERC 15-22 / 1018-1030, AC 15-22
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 20010580 (was IF57B24873) | View kit |
| B | Kit B, 5,000 hours | 20010581 (was IF57B24874) | View kit |
| C | Kit C, 10,000 hours | 30002084 (was IF57A25793) | View kit |
| D | Kit D, 20,000 hours (on request) | 30001904 (was IF57A24880) | Request this kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
ERC 2037-2045, AC 30-45
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001905 (was IF57A24881) | View kit |
| B | Kit B, 5,000 hours | 20010578 (was IF57A24882) | View kit |
| C | Kit C, 10,000 hours | 30002087 (was IF57A25797) | View kit |
Same kits as Optima 30-45 and Maxima 30. Mattei lists Kit D as obsolete.
Optima 11
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 20010579 (was IF57B24861) | View kit |
| B | Kit B, 5,000 hours | 30002294 (was IF57B24862) | View kit |
| C | Kit C, 10,000 hours | 30002081 (was IF57A25789) | View kit |
| D | Kit D, 20,000 hours | 30001896 (was IF57A24872) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Optima 15 / 18 / 22
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 20010580 (was IF57B24873) | View kit |
| B | Kit B, 5,000 hours | 20010581 (was IF57B24874) | View kit |
| C | Kit C, 10,000 hours | 30002084 (was IF57A25793) | View kit |
| D | Kit D, 20,000 hours (on request) | 30001904 (was IF57A24880) | Request this kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Optima 30 / 37 / 45
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001905 (was IF57A24881) | View kit |
| B | Kit B, 5,000 hours | 20010578 (was IF57A24882) | View kit |
| C | Kit C, 10,000 hours | 30002087 (was IF57A25797) | View kit |
Mattei lists Kit D as obsolete.
Optima 60 / 75 / 90
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001912 (was IF57B23889) | View kitSame Mattei part, listed under Maxima 75 |
| B | Kit B, 5,000 hours | 30002042 (was IF57A23884) | View kitSame Mattei part, listed under Maxima 55 |
| C | Kit C, 10,000 hours | 30001914 (was IF57A24891) | View kitSame Mattei part, listed under Maxima 55 |
| D | Kit D, 20,000 hours | 30002057 (was IF57A25686) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Optima 60 / 75 / 90 (RED version)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002041 (was IF57A25590) | View kitSame Mattei part, listed under Maxima 55 (Red Version) |
| B | Kit B, 5,000 hours | 30002042 (was IF57A25591) | View kitSame Mattei part, listed under Maxima 55 |
| C | Kit C, 10,000 hours | 30002043 (was IF57A25592) | View kitSame Mattei part, listed under Maxima 55 (Red Version) |
| D | Kit D, 20,000 hours | 30002044 (was IF57A25593) | View kit |
RED version machines. If your unit had the basket conversion, ask us which B kit applies.
Optima 110 / 132
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001916 (was IF57A24893) | View kitSame Mattei part, listed under Maxima 110 |
| B | Kit B, 5,000 hours | 30002146 (was IF57A25969) | View kit |
| C | Kit C, 10,000 hours | 30001918 (was IF57A24895) | View kit |
| D | Kit D, 20,000 hours | 30001919 (was IF57A24896) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Optima 200
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002300 (was IF57B24897) | View kitSame Mattei part, listed under Maxima 160 |
| B | Kit B, 5,000 hours | 30001921 (was IF57A24898) | View kit |
| C | Kit C, 10,000 hours | 30001944 (was IF57A24927) | View kit |
Mattei lists Kit D as obsolete.
Maxima 30
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001905 (was IF57A24881) | View kit |
| B | Kit B, 5,000 hours | 20010578 (was IF57A24882) | View kit |
| C | Kit C, 10,000 hours | 30002087 (was IF57A25797) | View kit |
Mattei lists Kit D as obsolete.
Maxima 55
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001912 (was IF57A24889) | View kitSame Mattei part, listed under Maxima 75 |
| B | Kit B, 5,000 hours | 30002042 (was IF57A25591) | View kit |
| C | Kit C, 10,000 hours | 30001914 (was IF57A24891) | View kit |
| D | Kit D, 20,000 hours | 30001915 (was IF57A24892) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Maxima 55 (RED version)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002041 (was IF57A25590) | View kit |
| B | Kit B, 5,000 hours | 30002042 (was IF57A25591) | View kit |
| C | Kit C, 10,000 hours | 30002043 (was IF57A25592) | View kit |
| D | Kit D, 20,000 hours | 30002044 (was IF57A25593) | View kitSame Mattei part, listed under Optima 60/75/90 (Red Version) |
RED version machines. If your unit had the basket conversion, ask us which B kit applies.
Maxima 75
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001912 (was IF57A24889) | View kit |
| B | Kit B, 5,000 hours | 30002045 (was IF57A25595) | View kit |
| C | Kit C, 10,000 hours | 30001936 (was IF57A24919) | View kit |
| D | Kit D, 20,000 hours | 30001937 (was IF57A24920) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Maxima 75 (RED version)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002041 (was IF57A25590) | View kitSame Mattei part, listed under Maxima 55 (Red Version) |
| B | Kit B, 5,000 hours | 30002045 (was IF57A25595) | View kit |
| C | Kit C, 10,000 hours | 30002046 (was IF57A25596) | View kit |
| D | Kit D, 20,000 hours | 30002047 (was IF57A25597) | View kit |
RED version machines. If your unit had the basket conversion, ask us which B kit applies.
Maxima 110
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001916 (was IF57A24893) | View kit |
| B | Kit B, 5,000 hours | 30002147 (was IF57A25970) | View kit |
| C | Kit C, 10,000 hours | 30001940 (was IF57A24923) | View kit |
| D | Kit D, 20,000 hours | 30001941 (was IF57A24924) | View kit |
Kit A every 2,500 h, Kit B every 5,000 h, Kit C every 10,000 h, Kit D every 20,000 h.
Maxima 110 (RED version)
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30001916 (was IF24A24893) | View kit |
| B | Kit B, 5,000 hours | 30002147 (was IF57A25970) | View kit |
| C | Kit C, 10,000 hours (on request) | 30002055 (was IF57A25684) | Request this kit |
RED version machines. Mattei lists Kit D as obsolete. If your unit had the basket conversion, ask us which B kit applies.
Maxima 160
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, 2,500 hours | 30002300 (was IF57B24897) | View kit |
| B | Kit B, 5,000 hours | 30002301 (was IF57B24898) | View kit |
| C | Kit C, 10,000 hours | 30001944 (was IF57A24927) | View kitSame Mattei part, listed under Optima 200 |
Mattei lists Kit D as obsolete.
RVD 7-11 / 7i / 11i
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| Maintenance | 2,500 hours | 30005400 | Request this kit |
| Thermostat | 5,000 hours | 30005402 | Request this kit |
Shares kits with Blade 8-12.
RVD / RVDi 30 / 37 / 45 / 55
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|

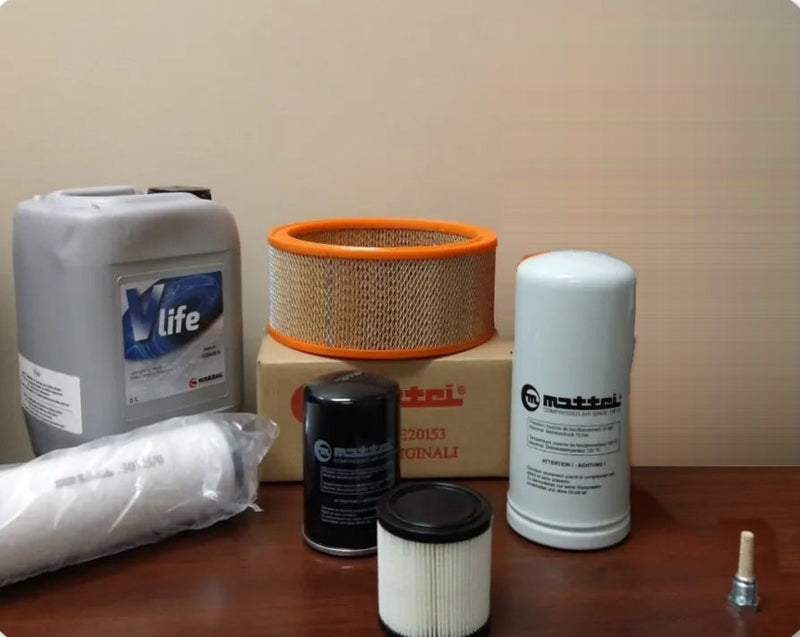

| A | Kit A, 2,500 hours | 30007072 | View kit |
| B | Kit B, 5,000 hours | 30007077 | View kit |
| C | Kit C, 10,000 hours | 30007073 | View kit |
| D | Kit D, every 4 years | 30007078 | View kit |
| E | Kit E, every 4 years | 30007079 | View kit |
Kits D (elastic element) and E (minimum pressure valve) are on a 4-year cycle.
RVX / RVXi 55 / 75 / 90, RVX UP 45 / 55 / 75
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| A | Kit A, runtime kit | 30006213 (was IF57A26460) | View kit |
| B | Kit B, separator kit | 30006214 (was IF57A26461) | View kit |
| C | Kit C, intake and MPV valve kit | 30006215 (was IF57A26462) | View kit |
| D | Kit D, oil seal replacement | 30006216 (was IF57A26463) | View kit |
| E | Kit E, thermostatic valve kit | 30006217 (was IF57A26464) | View kit |
| F | Kit F, elastic element kit | 30006447 (was IF57A26513) | View kit |
Mattei's price list shows two different hour schedules for RVX models, so we'll confirm which kits your machine is due for.
EM 750 / 1000
| Kit | Service | Mattei part # | Kit link |
|---|---|---|---|
| 5,000 h | 5,000 hours | 30001848 (was IF57A22829) | Request this kit |
| 10,000 h | 10,000 hours | 30001850 (was IF57A22831) | Request this kit |
Need help matching a kit? Call (803) 526-5797 or send us your model and nameplate details.
