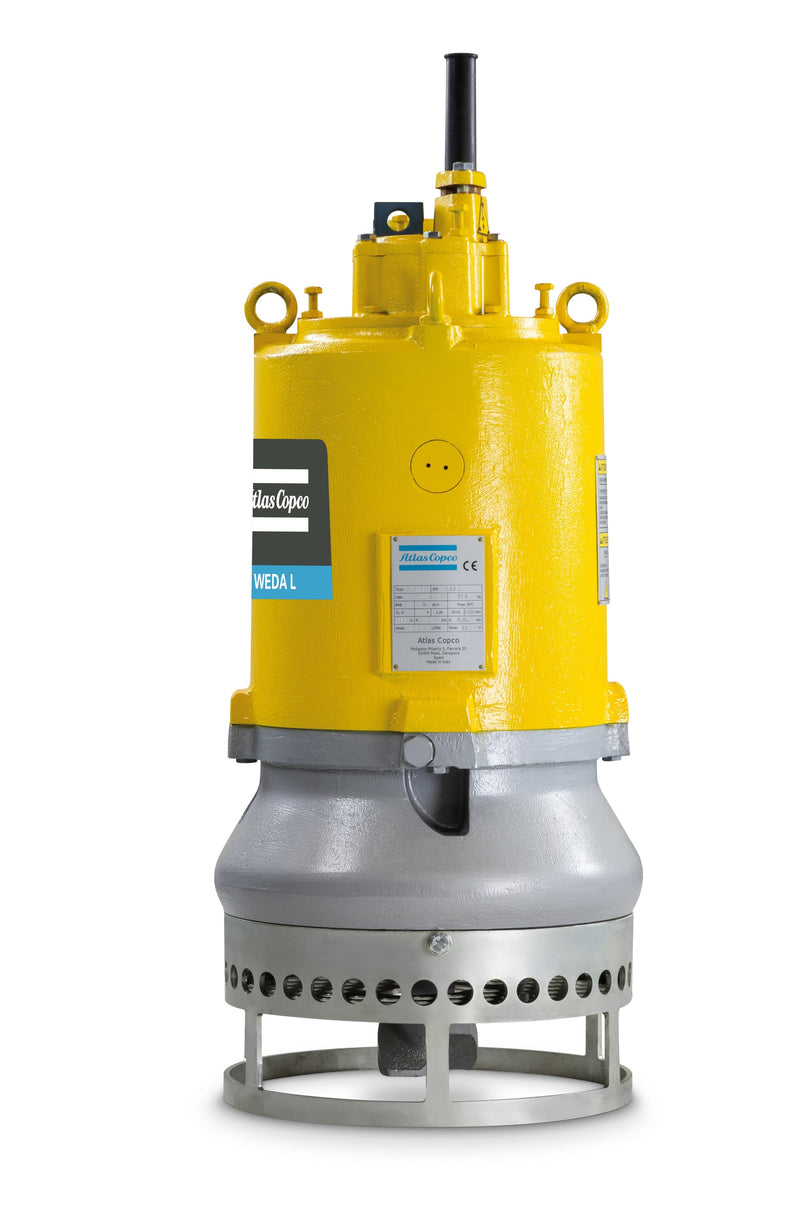

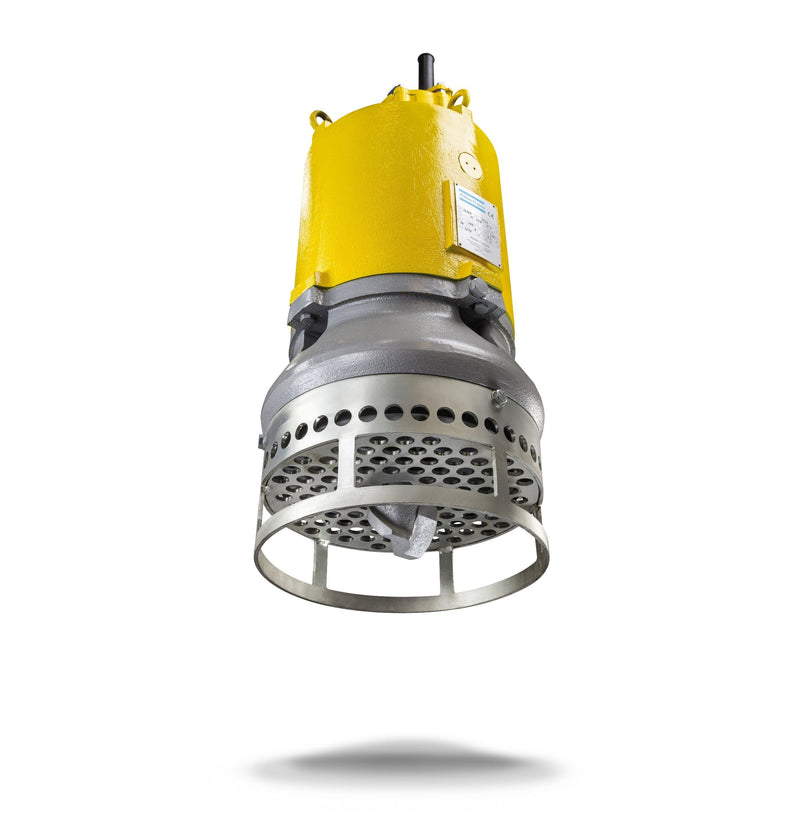

Atlas Copco WEDA L60N Submersible Slurry Pump

The Atlas Copco WEDA L60N is part of the WEDA L range for abrasive slurry and solids. A high-chrome agitator keeps solids in suspension to increase output.

Key Features

• High-chrome abrasion-resistant impeller and wear plates
• High-chrome agitator keeps solids in suspension, increasing output
• Solids handling up to 1.0" — abrasive, high-solids media
• Heavy-duty class H motor with thermal contacts for overload protection
• Heavy-duty bearings sized for typical slurry pumping loads
• Mechanical and labyrinth shaft seals optimized for slurry
• Handles specific gravity up to 1.5 and pH 4–10

Ideal Applications

• Water containing mud
• Abrasive media with high solids content
• Dredging
• Settling ponds
• Mining and quarries

Specifications

About the WEDA L60N

The Atlas Copco WEDA L60N pumps abrasive slurry with more flow and lift than the L50N at the same listed pump weight. Its high-chrome agitator helps keep solids mixed into the liquid, so the pump can move the slurry rather than leaving the material to settle. The submersible layout places the pump directly in the mixture for dredging or settling-pond work.

How the WEDA L60N compares

The 12.1 HP L60N reaches 480 gpm maximum flow, above the 350 gpm limit of the 7.4 HP WEDA L50N. The next 14.8 HP WEDA L70N reaches 530 gpm. Head limits rise from 60 ft to 75 ft to 81 ft across these models, but both the L50N and L60N weigh 578 lb. Choose among these models in the WEDA pump range by the flow available at the head you need.

Questions about the WEDA L60N

Does the agitator help with settled solids?

The high-chrome agitator helps bring solids into suspension and keep them mixed with the liquid. Keeping the material suspended helps it move with the water through the pump.

What jobs is the WEDA L60N for?

The L60N is intended for abrasive slurry with high solids content, including dredging and settling-pond applications. Check the mixture and the flow needed at the required lift before choosing the pump.

Can I get 480 gpm at 75 ft?

Maximum flow and maximum head are not reached at the same time. The 480 gpm and 75 ft figures are separate limits, so use the curve to establish flow at the head your system requires.
