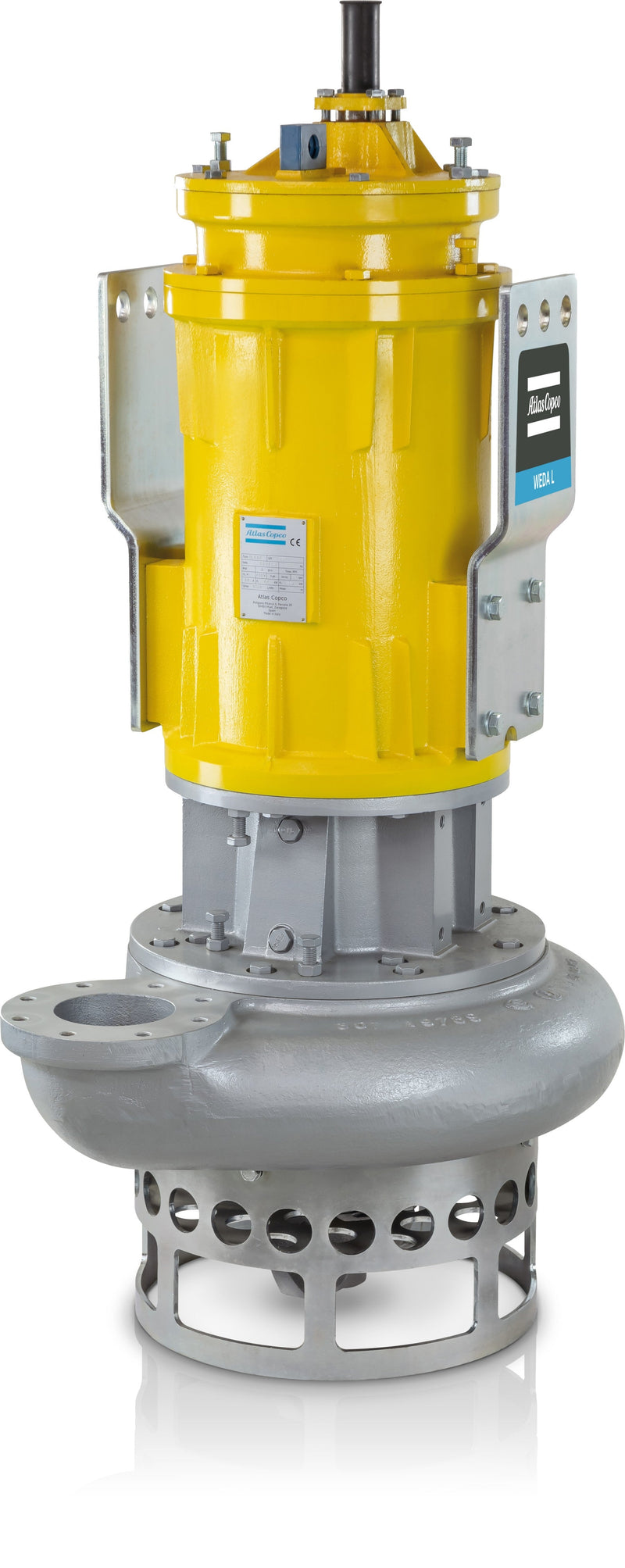

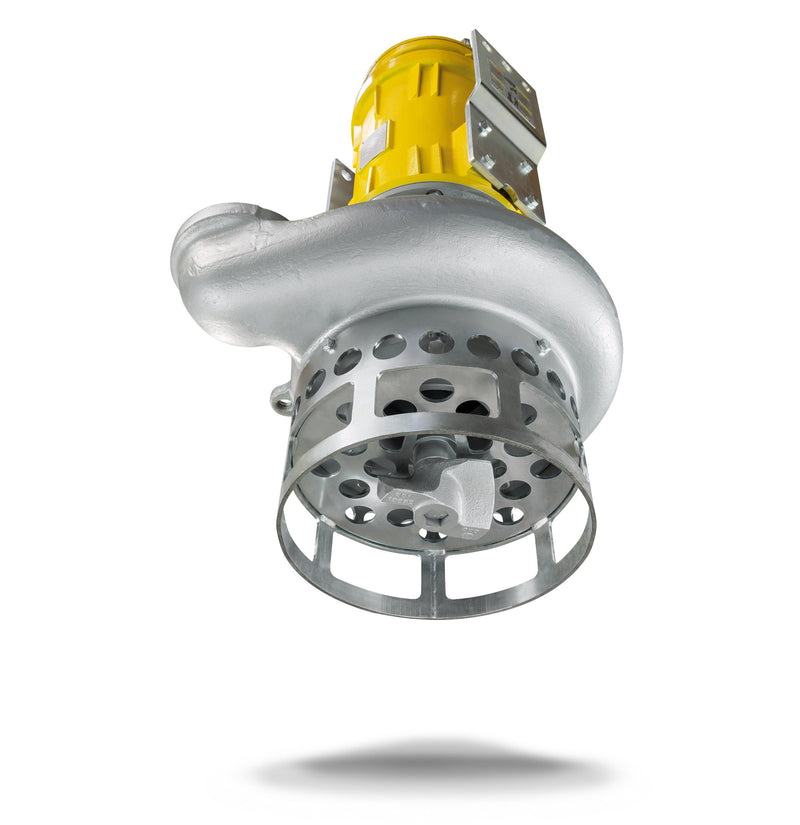

Atlas Copco WEDA L100N Submersible Slurry Pump

The Atlas Copco WEDA L100N is part of the WEDA L range for abrasive slurry and solids. A high-chrome agitator keeps solids in suspension to increase output.

Key Features

• High-chrome abrasion-resistant impeller and wear plates
• High-chrome agitator keeps solids in suspension, increasing output
• Solids handling up to 2.4" — abrasive, high-solids media
• Heavy-duty class H motor with thermal contacts for overload protection
• Heavy-duty bearings sized for typical slurry pumping loads
• Mechanical and labyrinth shaft seals optimized for slurry
• Handles specific gravity up to 1.5 and pH 4–10

Ideal Applications

• Water containing mud
• Abrasive media with high solids content
• Dredging
• Settling ponds
• Mining and quarries

Specifications

About the WEDA L100N

The Atlas Copco WEDA L100N is a 60 HP submersible slurry pump for abrasive mixtures of water and solids, including dredging and settling-pond work. Its high-chrome agitator helps keep solids stirred into the liquid so they can move through the pump, while the impeller and wear plates resist abrasion. This model provides more maximum flow than either the L95N or L110N, even though the L110N has a larger motor. That makes the L100N worth considering when moving slurry volume is the priority and the required lift falls within its curve.

How the WEDA L100N compares

The 60 HP L100N falls between the 50 HP WEDA L95N and the 101 HP WEDA L110N. Their maximum flows are 1,190 gpm, 2,600 gpm and 2,200 gpm respectively, with corresponding maximum heads of 168 ft, 114 ft and 131 ft. The L100N therefore has the highest flow ceiling of these three, while the others offer higher head limits. For a higher-lift job, check the other models in the WEDA pump range against the required flow.

Questions about the WEDA L100N

What slurry can it handle?

It handles abrasive mixtures of liquid and solids, with a 2.4 inch solids limit. Dredging and settling ponds are L-family applications, but the actual mixture must still suit the pump.

How does it handle abrasive material?

The high-chrome impeller and wear plates resist abrasive wear, while the agitator helps keep solids suspended in the liquid during pumping.

How big is the WEDA L100N?

The L100N has a 6 inch discharge, weighs 2,233 lb and runs at 1,150 rpm. Maximum flow and maximum head are not reached at the same time, so check the curve as well as the installation dimensions.
