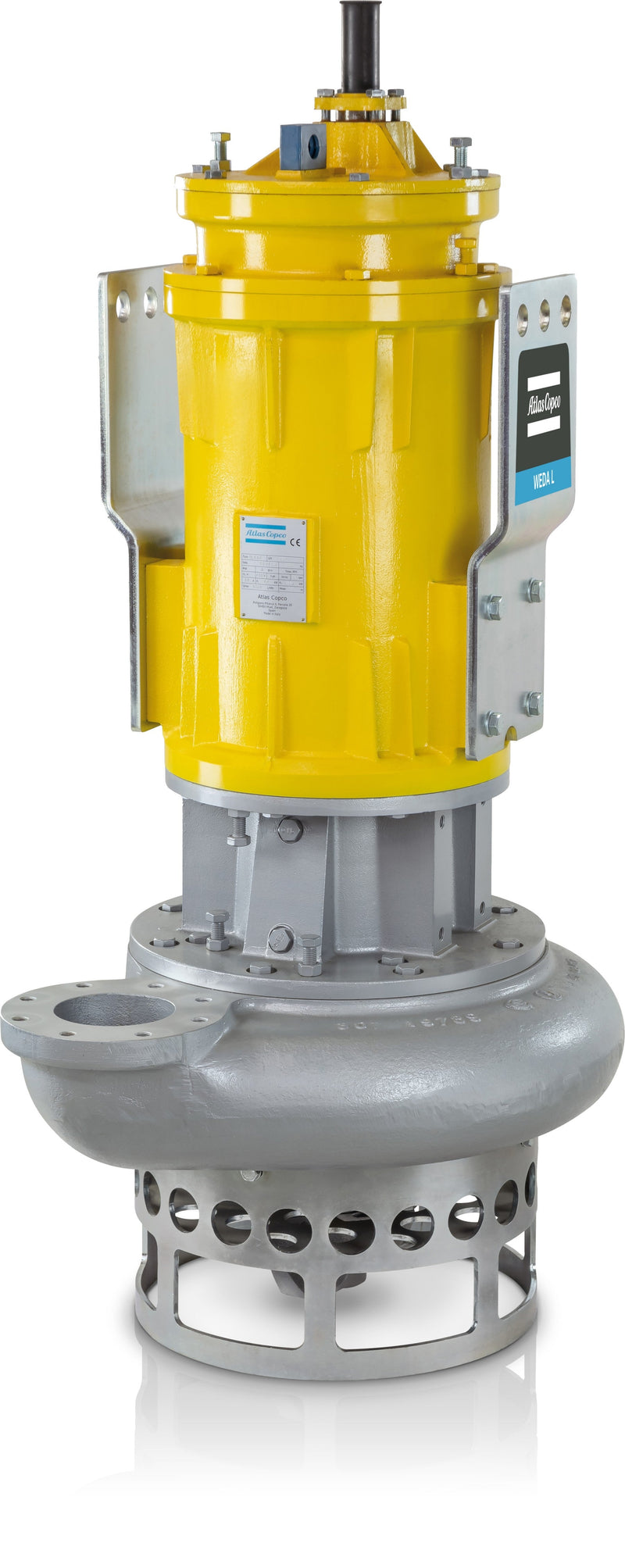

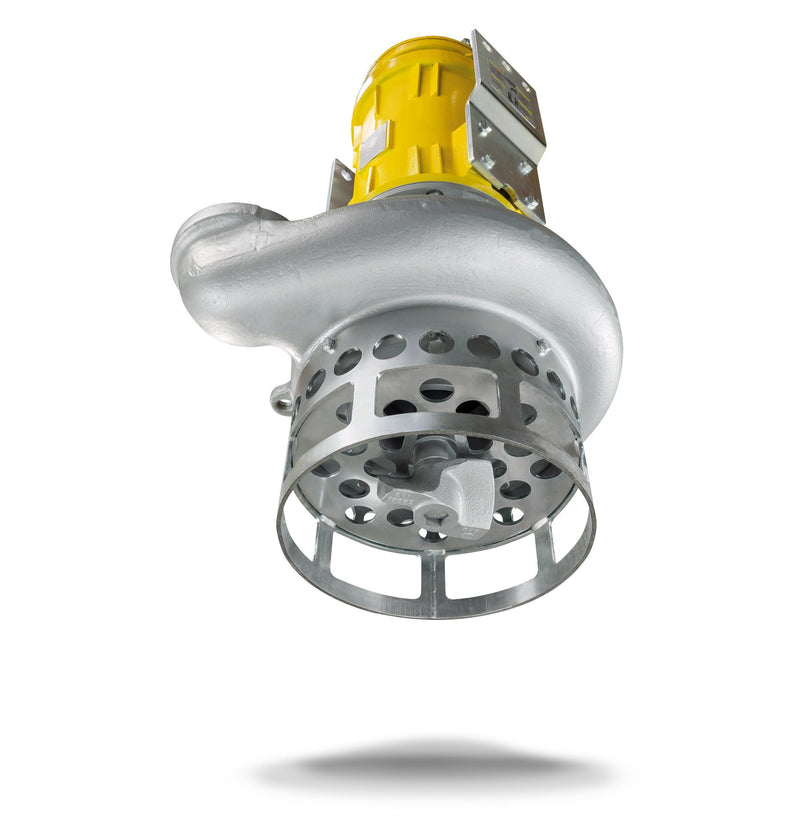

Atlas Copco WEDA L95N Submersible Slurry Pump

The Atlas Copco WEDA L95N is part of the WEDA L range for abrasive slurry and solids. A high-chrome agitator keeps solids in suspension to increase output.

Key Features

• High-chrome abrasion-resistant impeller and wear plates
• High-chrome agitator keeps solids in suspension, increasing output
• Solids handling up to 1.4" — abrasive, high-solids media
• Heavy-duty class H motor with thermal contacts for overload protection
• Heavy-duty bearings sized for typical slurry pumping loads
• Mechanical and labyrinth shaft seals optimized for slurry
• Handles specific gravity up to 1.5 and pH 4–10

Ideal Applications

• Water containing mud
• Abrasive media with high solids content
• Dredging
• Settling ponds
• Mining and quarries

Specifications

About the WEDA L95N

The Atlas Copco WEDA L95N is a 50 HP submersible slurry pump for abrasive mixtures of water and solids. Its high-chrome agitator helps keep that material stirred into suspension so it moves with the liquid, while abrasion-resistant hydraulic parts handle contact with the slurry. It reaches a higher head limit than the larger-motored L100N. For dredging or settling-pond work with a demanding lift, check the L95N's curve for the flow available at the head your discharge line requires.

How the WEDA L95N compares

The 50 HP L95N reaches 168 ft maximum head, above the 103 ft limit of the 20 HP WEDA L80N. The next 60 HP WEDA L100N has a lower 114 ft head ceiling but a higher 2,600 gpm flow ceiling, compared with 1,190 gpm for the L95N. The L95N offers more maximum head than either of these models in the WEDA pump range.

Questions about the WEDA L95N

How much head does the WEDA L95N have?

The L95N has a maximum head of 168 ft. Maximum flow and maximum head are not reached at the same time, so check the pump curve for the flow available at the lift you require.

Does it have an agitator?

It has a high-chrome agitator that helps keep solids suspended in the liquid. The stirred material can move with the water through the pump.

How heavy is the WEDA L95N?

The L95N weighs 1,667 lb. Check site access and how the pump will be placed before installation.
