EL-AVEL-AV BL3060GVP3P Two-Stage Cast-Iron Vertical Piston Compressor (5 HP, 60-Gal, Three-Phase)SKU BL3060GVP3P
5 HP18 CFM60 US Gallon Vertical, ASME-coded
$5,008.50

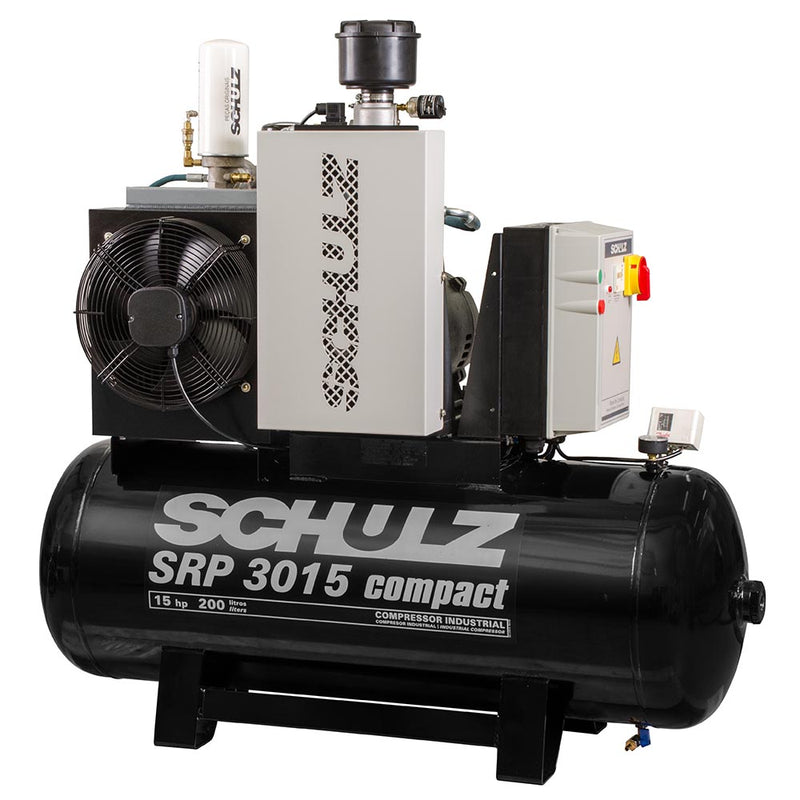

The Schulz SRP 3015 Compact-II delivers 51 CFM at 125 PSI from a 15 HP industrial-grade rotary screw airend mounted on a 60-gallon ASME-certified horizontal air receiver. This compact, tank-integrated package is engineered for shops and small plants that need 24/7 continuous-duty rotary screw performance without the floor space of a separate receiver.
| Type | Rotary Screw, Oil-Lubricated, Tank-Mounted |
|---|---|
| Horsepower | 15 HP (11 kW) |
| Free Air Delivery | 51 CFM @ 125 PSI |
| Maximum Pressure | 125 PSI (8.6 bar) |
| Tank Capacity | 60 gallon ASME, horizontal |
| Discharge Connection | 3/4" |
| Sound Level | 86 dB(A) |
| Weight | 463 lb |
| Dimensions (H x W x D) | 55 x 53 x 24 in |
| Drive | Direct belt drive |
| Cooling | Forced-air cooled |
| Country of Origin | Brazil |
| Brand | Schulz |
|---|---|
| Model # | SRP 3015 Compact-II |
| Mfr Part # | 970.3454-0-F |
| Horsepower | 15 HP |
| CFM | 51 |
| Max Pressure | 125 PSI (8.6 bar) |
| Tank Size | 60 gallon ASME, horizontal |
| Voltage | 230V / 460V |
| Phase | Single-Phase / Three-Phase |
| Noise | 86 dB(A) |
| Weight | 463 lb |
| Dimensions | 55 x 53 x 24 in |
| Country of Origin | Brazil |
We process most orders within one business day. Freight items ship by motor carrier — we'll coordinate delivery for residential and limited-access addresses.
