SchulzSchulz 7580HV30X-1 7.5 HP 80-Gal Piston Air CompressorSKU 7580HV30X-1$4,994.00$4,343.00
7.5 HP20.1 CFM80 gallon

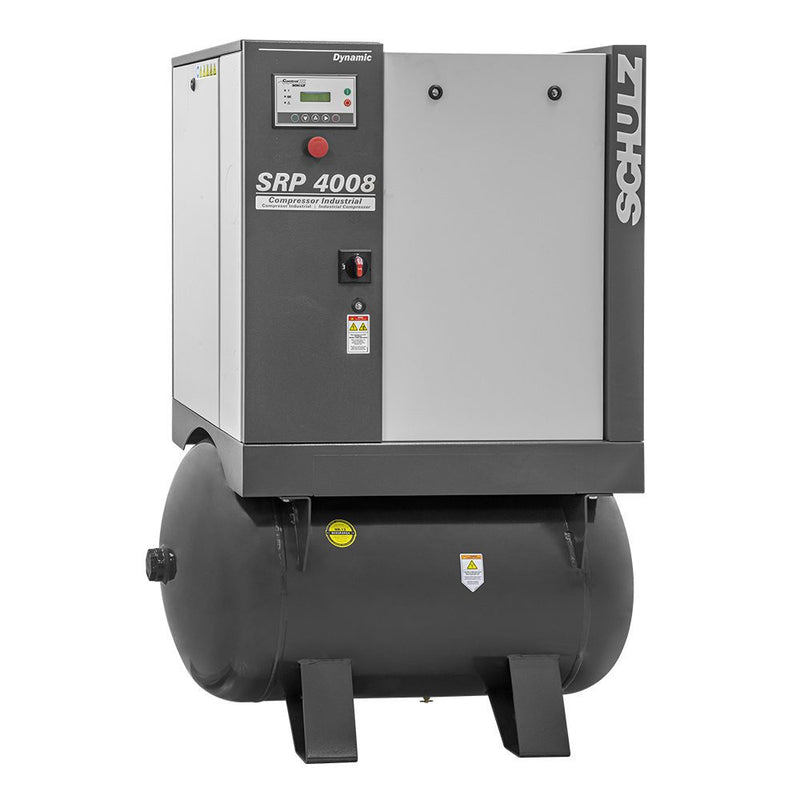

The Schulz SRP 4008 Dynamic packages a 7.5 HP industrial rotary screw airend (25 CFM @ 125 PSI) inside a fully-enclosed, sound-attenuated cabinet engineered for 24/7 continuous duty in ambient temperatures up to 113°F. The Dynamic line is the workhorse of the Schulz fixed-speed lineup — IP 55 totally enclosed three-phase motor, integrated 24V control panel with service disconnect, and a high-efficiency air/oil separator that delivers oil carry-over below 3 ppm.
| Type | Rotary Screw, Oil-Lubricated, Enclosed Cabinet |
|---|---|
| Horsepower | 7.5 HP (5.5 kW) |
| Free Air Delivery | 25 CFM @ 125 PSI |
| Maximum Pressure | 125 PSI (8.6 bar) |
| Discharge Connection | 1/2" – 1-1/2" depending on model |
| Sound Level | 69 dB(A) |
| Motor Enclosure | IP 55 Totally Enclosed |
| Drive | Belt drive |
| Control | ControlNet electronic controller, 24V control circuit |
| Weight | 500 lb |
| Dimensions (H x W x D) | 53.5 x 49.4 x 23.6 in |
| Cooling | Forced-air, axial cabinet fan |
| Country of Origin | Brazil |
| Brand | Schulz |
|---|---|
| Model # | SRP 4008 Dynamic |
| Mfr Part # | 970.3980-0 |
| Horsepower | 7.5 HP |
| CFM | 25 |
| Max Pressure | 125 PSI (8.6 bar) |
| Tank Size | 60 gallon ASME, horizontal |
| Voltage | 230V / 460V |
| Phase | Single-Phase / Three-Phase |
| Noise | 69 dB(A) |
| Weight | 500 lb |
| Dimensions | 53.5 x 49.4 x 23.6 in |
| Country of Origin | Brazil |
We process most orders within one business day. Freight items ship by motor carrier — we'll coordinate delivery for residential and limited-access addresses.
