Atlas Copco WEDA S60N Submersible Sludge Pump

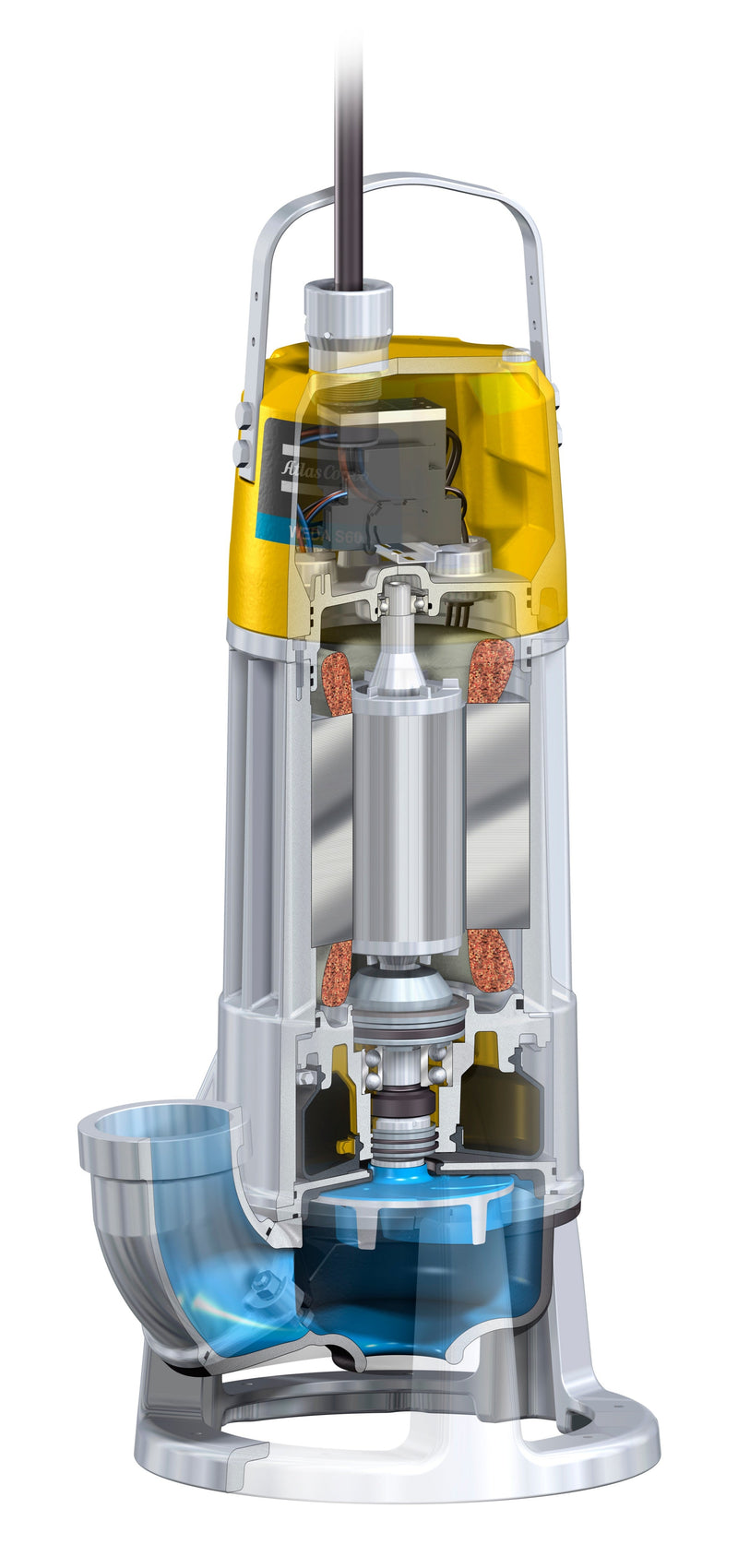

The Atlas Copco WEDA S60N handles thick, soft, wet mud and similarly viscous mixtures of liquids and solids. A vortex-type high-chrome impeller (55 HRC) clears large solids that would clog a standard drainage pump.

Key Features

• High-chrome cast-iron vortex impeller (55 HRC) for large solids passage
• Solids handling up to 2" — sludge and light slurry
• Built-in starter and motor protection — plug and pump
• Dry-running capability from a carefully sized, heat-dissipating motor
• Double mechanical seal in an oil bath with robust o-ring design
• External oil screws so preventive maintenance actually gets done
• Compact, high power-to-weight ratio for real transportability

Ideal Applications

• Sludge or light slurry
• Tank clean-out
• Trench and pond cleaning
• Mining and quarries
• Construction site dewatering

Specifications

About the WEDA S60N

The Atlas Copco WEDA S60N pumps sludge and light slurry where more flow and lift are needed than the S50N can provide. Its vortex-type impeller allows solids to pass with the liquid, and the submersible layout suits work in tanks, trenches and ponds. This model uses three-phase power and belongs to the S family for soft mud and light slurry. For more abrasive mixtures, the separate L family offers slurry pumps built for that material, so the type of solids matters as well as the volume to be moved.

How the WEDA S60N compares

The 9.3 HP S60N reaches 420 gpm maximum flow and 97 ft maximum head, compared with 370 gpm and 87 ft for the 7 HP WEDA S50N. For abrasive slurry, the separate L family includes the 7.4 HP WEDA L50N. Match the pump to the mixture as well as the required flow when choosing from the WEDA pump range.

Questions about the WEDA S60N

Is the WEDA S60N for sludge or slurry?

The S60N belongs to the S family for sludge and light slurry. For abrasive media with high solids content, compare the L family against the material you need to move.

What solids and discharge sizes does it have?

The S60N has a 2 inch solids limit and a 4 inch discharge. These are different measurements: the discharge connection does not define the largest solids the pump can pass.

How heavy is it, and what power does it use?

The pump weighs 144 lb and uses three-phase power. Maximum flow and maximum head are not reached at the same time, so check the curve for the required duty as well as the supply.
