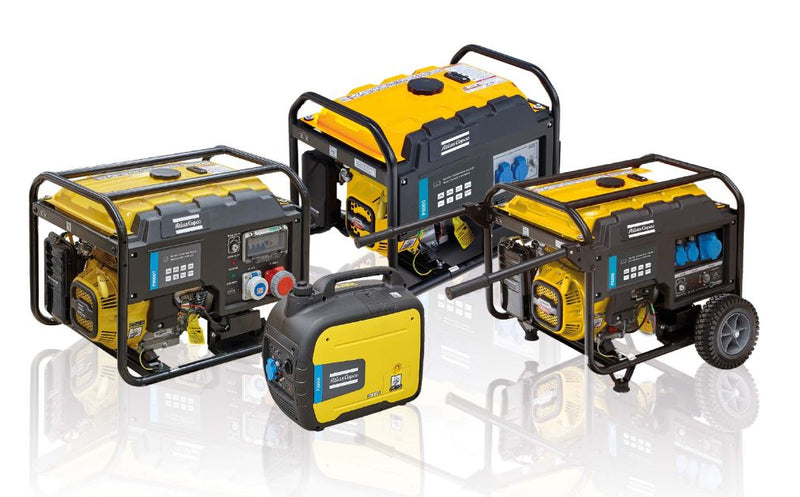

Atlas Copco P6500W Portable Gasoline Generator
HP5 kVACFM389 cm³PSI75 dB(A)Tank6.6 gal
$1,435.20
SKU
8170023017
Downloads & Resources
- Ships in 24 hrs
- Authorized dealer
- Service support
The Atlas Copco P6500W is a 5.5 kVA / 6.5 kVA peak portable open-frame gasoline generator with 120V/240V output — a construction-grade workhorse with electric start. Designed to power site lighting, small tools, and back-up loads.
Key Features
- Open-frame design — easy field service and inspection
- 5.5 kVA continuous / 6.5 kVA peak — built for tough construction loads
- 120V and 240V outlets
- EPA-compliant gasoline engine, automatic voltage regulation
- Steel frame with lift hooks
Ideal Applications
- Construction site power
- Tool battery charging
- Rental fleet duty
- Back-up and emergency power
- Light commercial and trade use
Specifications
| Model | P6500W |
|---|---|
| Atlas Copco Part Number | 8170023017 |
| Type | Portable Gasoline Generator |
| Tier Rating | EPA |
| Nominal Power | 5 kVA |
| Peak Power | 5.5 kVA |
| Voltage | 240/120 V |
| Frequency | 60 Hz |
| Sockets | 2 x 120V Duplex 15A + 1 x 120/240V 30ATwist lock |
| Engine | AC390FD Gasoline |
| Engine Output | 8.1999999999999993 kW |
| Engine Displacement | 389 cm³ |
| Starter | Electric/Recoil |
| Fuel Tank Capacity | 6.6 gal |
| Fuel Autonomy (at nom. load) | 10 h |
| Sound Pressure (LpA @ 7 m) | 75 dB(A) |
| Sound Power (LwA) | 97 dB(A) |
| Dimensions (L × W × H) | 26.6 L × 21.2 W × 21.2 H in |
| Weight | 174 lb |
| Warranty | 12 months from start-up / 18 months from receipt (whichever comes first) |
Why Buy From A1 Compressor Warehouse
- Authorized Atlas Copco dealer — full factory warranty support.
- Free application sizing — call (803) 693-2350 or email sales@a1compressorwarehouse.com before you order.
- Same-day quote response, 24-hour order processing.
- Direct-to-consumer pricing — no middleman markup.
Specifications
| Brand | Atlas Copco |
|---|---|
| Model # | P6500W |
| Mfr Part # | 8170023017 |
| Horsepower | 5 kVA |
| CFM | 389 cm³ |
| Max Pressure | 75 dB(A) |
| Tank Size | 6.6 gal |
| Voltage | 240/120 V |
| Noise | 75 dB(A) |
| Weight | 174 lb |
| Dimensions | 26.6 L × 21.2 W × 21.2 H in |
| Warranty | 12 months from start-up / 18 months from receipt (whichever comes first) |
