Sale
SchulzSchulz 360VL18X-1 3 HP 60-Gal Piston Air CompressorSKU 932.3438-0$2,007.00$1,745.00
3 HP13.7 CFM60 gallon ASME, vertical

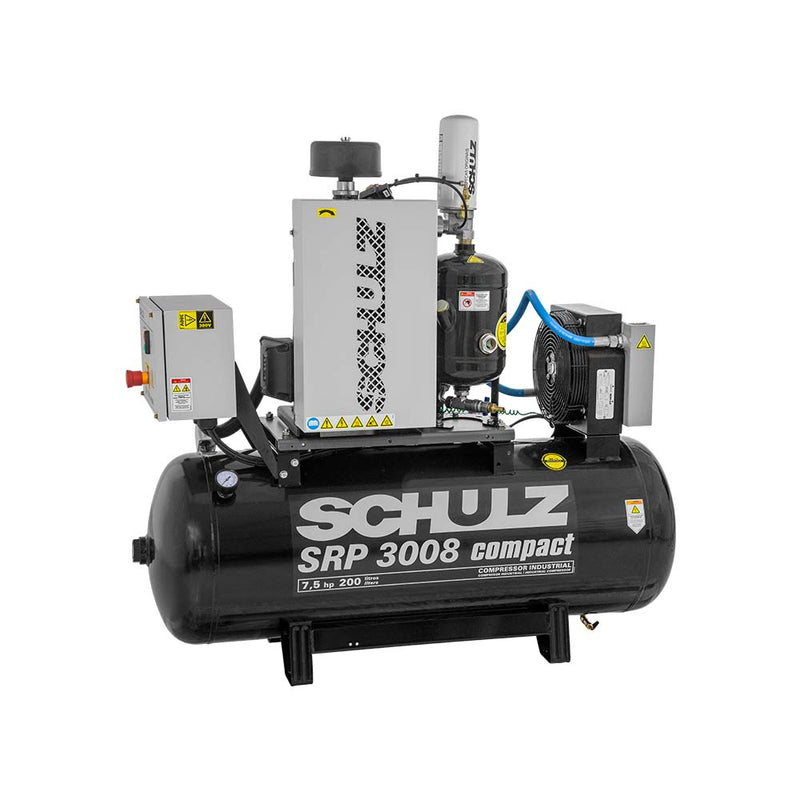

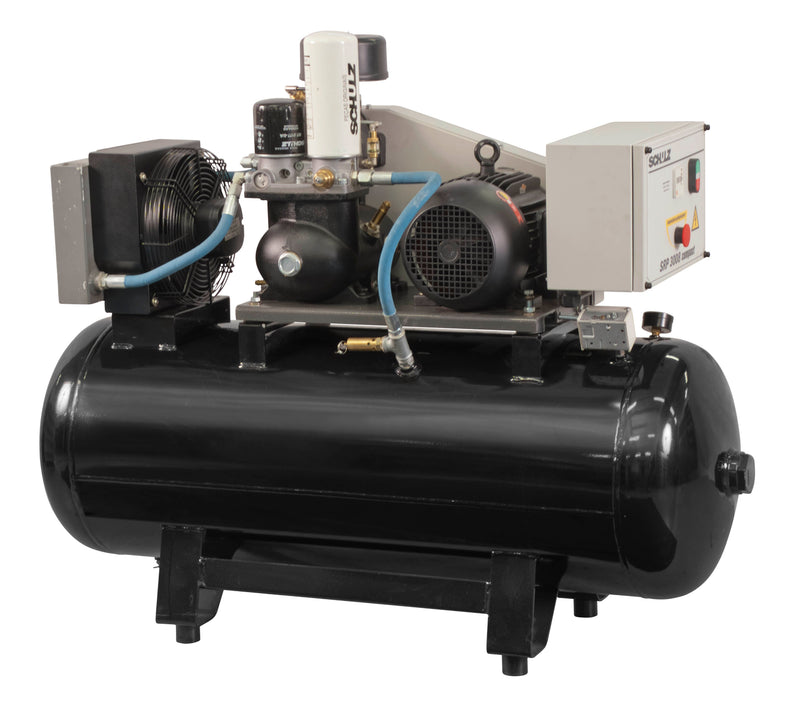

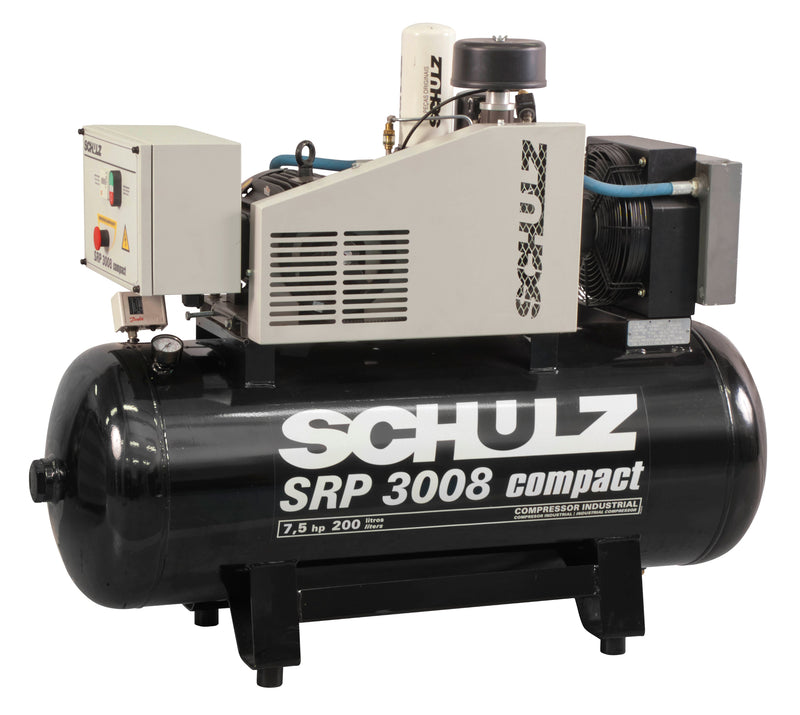

The Schulz SRP 3008 Compact delivers 25 CFM at 125 PSI from a 7.5 HP industrial-grade rotary screw airend mounted on a 60-gallon ASME-certified horizontal air receiver. This compact, tank-integrated package is engineered for shops and small plants that need 24/7 continuous-duty rotary screw performance without the floor space of a separate receiver.
| Type | Rotary Screw, Oil-Lubricated, Tank-Mounted |
|---|---|
| Horsepower | 7.5 HP (5.5 kW) |
| Free Air Delivery | 25 CFM @ 125 PSI |
| Maximum Pressure | 125 PSI (8.6 bar) |
| Tank Capacity | 60 gallon ASME, horizontal |
| Discharge Connection | 1/2" |
| Sound Level | 83 dB(A) |
| Weight | 373 lb |
| Dimensions (H x W x D) | 42 x 35 x 18 in |
| Drive | Direct belt drive |
| Cooling | Forced-air cooled |
| Country of Origin | Brazil |
| Brand | Schulz |
|---|---|
| Model # | SRP 3008 Compact |
| Mfr Part # | 970.3890-0 |
| Horsepower | 7.5 HP |
| CFM | 25 |
| Max Pressure | 125 PSI (8.6 bar) |
| Tank Size | 60 gallon ASME, horizontal |
| Voltage | 230V / 460V |
| Phase | Single-Phase / Three-Phase |
| Noise | 83 dB(A) |
| Weight | 373 lb |
| Dimensions | 42 x 35 x 18 in |
| Country of Origin | Brazil |
