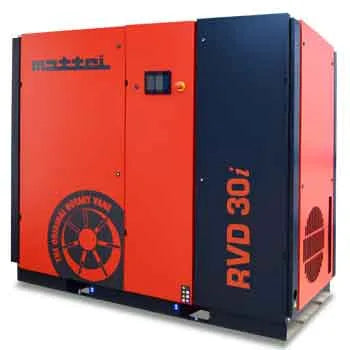

Mattei RVD 30 / 37 / 45 / 55 Direct-Drive Fixed-Speed Rotary Vane Compressor (40–75 HP)
HP40CFM207PSI138PhaseThree-Phase
$43,090.50
SKU
1400000300
- Ships in 24 hrs
- Authorized dealer
- Service support
Mattei rotary vane technology is the gold standard for continuous-duty industrial compressed air. With a single moving rotor (no contact between vanes and stator), Mattei compressors typically deliver 80,000+ hours to first overhaul — three to four times the service life of a comparable rotary screw machine, with lower vibration, quieter operation, and steadier flow.
The Mattei RVD 30 / 37 / 45 / 55 Series is the fixed-speed, direct-drive rotary vane platform for mid-size industrial loads. Each unit ships with a sound-attenuated enclosure rated to 45°C / 113°F ambient, a 7-inch Maestro XC touchscreen controller with IIoT Industry 4.0 communications (real-time Mattei Cloud-based operational and historical data), air-cooled aftercooler, electronic soft-starter, Rotoroil F2 lubricant, and IE3 high-efficiency motor.
Specifications
| Power | 40 HP / 30 kW (RVD 30) • 50 HP / 37 kW (RVD 37) • 60 HP / 45 kW (RVD 45) • 75 HP / 55 kW (RVD 55) |
| Flow @ 145 PSI | 201.9 / 230.8 / 298.5 / 310.5 ACFM |
| Power Supply | RVD 30: 230 or 460V / 60Hz / 3ph • RVD 37/45/55: 460V / 60Hz / 3ph |
| Drive | Direct drive (direct coupling) |
| Dimensions | 84 × 43 × 74 in |
| Weight | 2,420–2,772 lb |
| Sound Level | 68 dB(A) |
| Air Outlet | Rp 2 in |
| Motor | IE3 high-efficiency |
| Control | MAESTRO XC 7" touchscreen with Cloud connectivity |
| Working Pressure | 138 PSI |
| Country of Origin | Italy |
Optional Upgrades (Field-Installed)
These factory-supported options can be added to your order — call us to configure.
| Upgrade | Mattei Code | Add to Price |
|---|---|---|
| Water-cooled version (RVD 30) | KVKM003 | $4399 |
| Water-cooled version (RVD 37/45/55) | KVKM004 | $4399 |
| Ultra-Premium IE4 motor (RVD 30) | KVKL005 | $1466 |
| Ultra-Premium IE4 motor (RVD 37) | KVKL006 | $1599 |
| Ultra-Premium IE4 motor (RVD 45) | KVKL007 | $2133 |
| Ultra-Premium IE4 motor (RVD 55) | KVKL008 | $2133 |
| Heat recovery kit (factory) | KVKE002 | $4447 |
| Heaters kit (factory) | KVKF002 | $800 |
| Oil quality sensor kit (factory) | KVKN002 | $3333 |
| Remote management kit (factory) | KVK0002 | $785 |
| V-Life Xtreme Food lubricant (factory) | KVKG002 | $1047 |
| Condensate drain & separator (field) | 30001679 | $933 |
| Oil quality sensor kit (field) | 30006989 | $3333 |
| Heaters kit (field) | 30006976 | $800 |
| Oil quality sensor kit – V-Life Xtreme (field) | 30006980 | $3333 |
| 4G Modem for Maestro XC (field) | 20019399 | $942 |
| Cloud License | 20020090 | $333 |
Why buy from A1 Compressor Warehouse
- Authorized Mattei distributor — full factory warranty
- Free pre-purchase consultation: call us or email sales@a1compressorwarehouse.com
- Same-day response to inquiries; 24-hour order processing
- Service support and OEM Mattei maintenance kits stocked
Specifications
| Brand | Mattei |
|---|---|
| Model # | 1400000300 |
| Mfr Part # | 1400000300 |
| Horsepower | 40 HP |
| CFM | 207 |
| Max Pressure | 138 PSI |
| Voltage | 230V / 460V |
| Phase | Three-Phase |
| Noise | 68 dB(A) |
| Weight | 2,420–2,772 lb |
| Dimensions | 84 × 43 × 74 in |
| Country of Origin | Italy |
