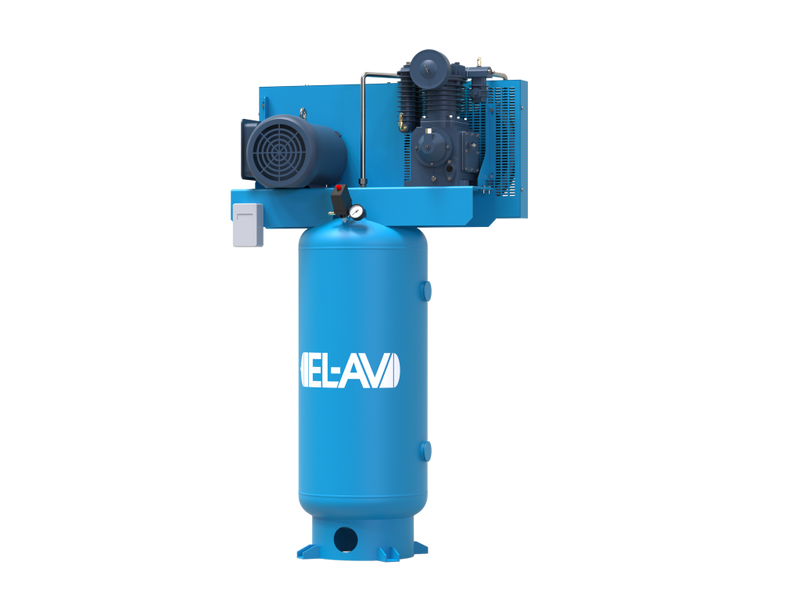

EL-AV BL3060GVP3P Two-Stage Cast-Iron Vertical Piston Compressor (5 HP, 60-Gal, Three-Phase)

EL-AV BL Series two-stage vertical-tank piston compressors are built around heavy-duty BL-30 and BL-60 cast-iron pump blocks for tradesman, automotive, machine shop, and light industrial service. Slow-RPM operation (510 – 730 pump RPM) keeps internal temperatures down and dramatically extends valve and ring life vs. the high-speed oil-lubricated piston compressors commonly sold at hardware-store price points.

• Two-stage cast-iron pump — low-RPM design, 175 PSI max working pressure
• ASME-coded vertical receiver — floor-saving footprint
• Open belt-guard induction motor — 1750 RPM, 208V / 230V power
• Aftercooler & oil sight glass standard

BL3060GVP3P — Detailed Specifications

Application Fit

Sized for 2 – 4 simultaneous trade tools (impact wrench, framing nailer, 1/2" air ratchet) or one mid-duty CNC plasma / shop application. For continuous-duty rotary-screw replacement, step up to an EL+ Series inverter machine.

Ships From A1CW

Same-day order processing on in-stock BL units. Free pre-sale sizing, electrical sanity check, and post-sale parts support included with every machine.
