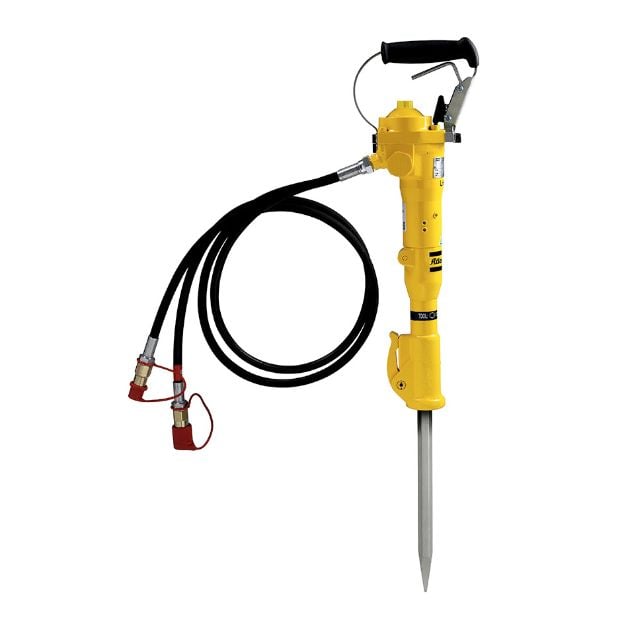

Atlas Copco LH 11 Hydraulic Pick Hammer
Atlas CopcoModel #: LH 11

Atlas Copco LH 11 Hydraulic Pick Hammer

$2,301.00
SKU 1801 1741 18
Orders processed next business day.

Ship dates vary by vendor and can change.

Preferred for freight or configured items
Financing available — learn more
  • Processed next business day
  • Authorized dealer
  • Service support

The Atlas Copco LH 11 is a hydraulic pick hammer for breaking light concrete and brickwork. It operates on a hydraulic oil supply rather than compressor air.

Key Features

  • Hydraulic operation: 20 l/min (5.3 US gpm) oil flow at 80–100 bar working pressure
  • 7/8-inch x 3-1/4-inch shank
  • Slim design and low noise levels

Ideal Applications

  • Breaking light concrete and brickwork

Specifications

Part Number 1801 1741 18
Model LH 11
Type Hydraulic Pick Hammer
Operating Medium Hydraulic
Shank / Chuck 7/8" x 3-1/4"
Tool Length 25.6 in
Tool Weight 34.2 lb
Oil Flow 20 l/min (5.3 US gpm)
Working Pressure 80–100 bar (1,160–1,450 psi)
Impact Rate 2,300 BPM
EHTMA Class C
Warranty 12 months from start-up / 18 months from receipt (whichever comes first)
