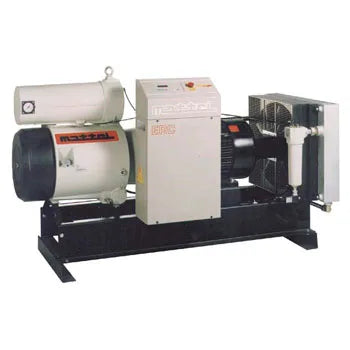

Mattei CLASSIC ERC 1 / 2 Direct-Drive Rotary Vane Compressor (3 HP)
HP2CFM5.1PSI138PhaseThree-Phase
$6,090.84
SKU
1400000354
- Processed next business day
- Authorized dealer
- Service support
Mattei rotary vane technology is the gold standard for continuous-duty industrial compressed air. With a single moving rotor (no contact between vanes and stator), Mattei compressors are rated for a service life of up to 100,000 hours, with lower vibration, quieter operation, and steadier flow than a comparable rotary screw machine.
The Mattei CLASSIC ERC 1 / 2 is Mattei's smallest direct-drive, fixed-speed rotary vane compressor — designed for small dental practices, lab use, single-station shops, and OEM integration. Equipped with air aftercooler, Rotoroil F2 oil fill, and an IE3 high-efficiency motor (three-phase versions only).
Specifications
| Power | ERC 1-T: 2 HP • ERC 2-S / 2-T: 3 HP / 2.2 kW |
| Flow @ 145 PSI | ERC 1-T: 5.1 ACFM • ERC 2-S / 2-T: 6.7 ACFM |
| Power Supply | ERC 2-S: 230V / 60Hz / 1-Phase • ERC 1-T / 2-T: 460V / 60Hz / 3-Phase |
| Drive | Direct drive |
| Dimensions | 29 × 16 × 17 in |
| Weight | 121 lb |
| Sound Level | 67 dB(A) |
| Air Outlet | 1/2 in |
| Working Pressure | 138 PSI |
| Country of Origin | Italy |
Optional Upgrades (Field-Installed)
These factory-supported options can be added to your order — call us to configure.
| Upgrade | Mattei Code | Add to Price |
|---|---|---|
| Pressure switch kit (ERC 2-S) | 20010895 | $235 |
| Pressure switch kit (ERC 1-T / 2-T) | 20010896 | $211 |
Why buy from A1 Compressor Warehouse
- Authorized Mattei distributor — full factory warranty
- Free pre-purchase consultation: call us or email sales@a1compressorwarehouse.com
- Same-day response to inquiries; next-business-day order processing
- Service support; OEM Mattei maintenance kits sourced to order
Specifications
| Brand | Mattei |
|---|---|
| Model # | ERC 1-T |
| Mfr Part # | 1400000354 |
| Horsepower | 2 HP |
| CFM | 5.1 |
| Max Pressure | 138 PSI |
| Voltage | 460V |
| Phase | Three-Phase |
| Noise | 67 dB(A) |
| Weight | 121 lb |
| Dimensions | 29 × 16 × 17 in |
| Country of Origin | Italy |
Specifications by model
| Model / Option | Model Number | Horsepower | CFM | Voltage | Phase | Price |
|---|---|---|---|---|---|---|
| ERC 1-T (2 HP, 460V/3ph) | ERC 1-T | 2 HP | 5.1 | 460V | Three-Phase | $6,090.84 |
| ERC 2-S (3 HP, 230V/1ph) | ERC 2-S | 3 HP | 6.7 | 230V | Single-Phase | $6,652.80 |
| ERC 2-T (3 HP, 460V/3ph) | ERC 2-T | 3 HP | 6.7 | 460V | Three-Phase | $6,457.08 |
Shipping & Returns
We process most orders within one business day. Freight items ship by motor carrier — we'll coordinate delivery for residential and limited-access addresses.
- Nationwide shipping. Call (803) 526-5797 for a freight quote on large equipment.
- All sales final. Please confirm fitment, specifications, and compatibility before ordering — contact us if you need a sizing consult.
- Manufacturer warranty applies — see spec sheet or contact us with your serial number.
