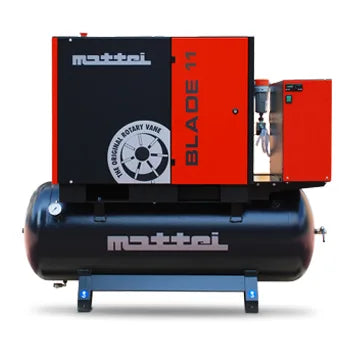

Mattei BLADE 11 IE3 15 HP Belt-Drive Three-Phase Rotary Vane Compressor
HP15CFM64PSI109 (115 ver) / 143 PSI (150 ver) / 168 PSI (175 ver)Tank80 or 120 gallonPhaseThree-Phase
$18,026.25
SKU
1400000165
- Ships in 24 hrs
- Authorized dealer
- Service support
Mattei rotary vane technology is the gold standard for continuous-duty industrial compressed air. With a single moving rotor (no contact between vanes and stator), Mattei compressors typically deliver 80,000+ hours to first overhaul — three to four times the service life of a comparable rotary screw machine, with lower vibration, quieter operation, and steadier flow.
The Mattei BLADE 11 IE3 is a 15 HP / 11 kW three-phase belt-drive rotary vane compressor. Available in 208V, 230V, and 460V (60 Hz / 3-phase), with operating pressure choices of 115 PSI (low), 150 PSI (high), or 175 PSI (extra high). Equipped with air aftercooler, MAESTRO XB control & protection, star-delta starter, Rotoroil F2 oil fill, and an IE3 motor.
Choose your configuration: base unit (skid-mounted, requires separate tank), 80 or 120 gallon ASME tank-mounted, or fully integrated air station with tank + refrigerated air dryer + 1.0-micron prefilter.
Specifications
| Power | 15 HP / 11 kW |
| Flow @ 115 PSI (L) | 64.2 ACFM |
| Flow @ 150 PSI (H) | 57.2 ACFM |
| Flow @ 175 PSI (HH) | 53.0 ACFM |
| Power Supply | 208V / 60Hz / 3ph • 230V / 60Hz / 3ph • 460V / 60Hz / 3ph |
| Drive | Belt drive |
| Dimensions (base) | 37 × 28.4 × 31.1 in |
| Dimensions (tank) | 63 × 32.4 × 52.2 in (80gal) • 67 × 32.4 × 56.2 in (120gal) |
| Weight (base unit) | 630 lb |
| Sound Level | 67 dB(A) |
| Air Outlet | 3/4 in NPT |
| Motor | IE3 high-efficiency |
| Control | MAESTRO XB |
| Lubricant | Rotoroil F2 (standard fill) |
| Working Pressures | 109 PSI (115 ver) / 143 PSI (150 ver) / 168 PSI (175 ver) |
| Country of Origin | Italy |
Optional Upgrades (Field-Installed)
These factory-supported options can be added to your order — call us to configure.
| Upgrade | Mattei Code | Add to Price |
|---|---|---|
| Maestro XB expansion module | 20000262 | $206 |
| Cabinet heater kit (protects to +14°F ambient) | 30001707 | $2055 |
| V-Life Food Lubricant | — | $149 |
Why buy from A1 Compressor Warehouse
- Authorized Mattei distributor — full factory warranty
- Free pre-purchase consultation: call us or email sales@a1compressorwarehouse.com
- Same-day response to inquiries; 24-hour order processing
- Service support and OEM Mattei maintenance kits stocked
Specifications
| Brand | Mattei |
|---|---|
| Model # | 1400000165 |
| Mfr Part # | 1400000165 |
| Horsepower | 15 HP |
| CFM | 64 |
| Max Pressure | 109 PSI (115 ver) / 143 PSI (150 ver) / 168 PSI (175 ver) |
| Tank Size | 80 or 120 gallon |
| Voltage | 208V / 230V / 460V |
| Phase | Three-Phase |
| Noise | 67 dB(A) |
| Weight | 630 lb |
| Dimensions | 37 × 28.4 × 31.1 in |
| Country of Origin | Italy |
Shipping & Returns
We process most orders within one business day. Freight items ship by motor carrier — we'll coordinate delivery for residential and limited-access addresses.
- Nationwide shipping. Call (803) 693-2350 for a freight quote on large equipment.
- All sales final. Please confirm fitment, specifications, and compatibility before ordering — contact us if you need a sizing consult.
- Manufacturer warranty applies — see spec sheet or contact us with your serial number.
