How do I size an industrial air compressor?

Size a compressor by the total CFM (cubic feet per minute) your tools and equipment require at their operating PSI, then add roughly 30% headroom for future growth and to avoid running the unit at 100% duty. Add the CFM of every tool that may run simultaneously, match the required pressure (most shop applications run 90-125 PSI), and confirm your available electrical supply (voltage and phase). A1 Compressor Warehouse offers free sizing support to match the right compressor to your application.

What is the difference between oil-free and oil-lubricated air compressors?

Oil-lubricated compressors use oil to lubricate and seal the compression element, offering long life and lower cost for general industrial use, but they require oil changes and can carry trace oil into the air. Oil-free compressors deliver Class 0 air with no oil in the airstream, which is essential for medical, dental, food, electronics, and pharmaceutical applications where any oil contamination is unacceptable. Anest Iwata oil-free scroll compressors are a common choice for these clean-air needs.

What size air compressor do I need for air tools?

Check the CFM requirement for each air tool and add the CFM of all tools that will run at once, then add about 30% headroom. Light tools like impact wrenches need 3-5 CFM, while continuous-demand tools like sanders or grinders can need 8-12 CFM or more. For most professional shops a two-stage compressor in the 5-10 HP range covers a single-bay operation; larger shops and production lines typically move to rotary screw compressors for continuous duty.

Is A1 Compressor Warehouse an authorized dealer?

Yes. A1 Compressor Warehouse is an authorized dealer for Atlas Copco, Anest Iwata, Mattei, Schulz, and EL-AV. Every product ships with genuine OEM parts and full manufacturer warranty. We serve customers nationwide with fast US shipping and provide service in the Carolinas.

What is the difference between a rotary screw and a reciprocating air compressor?

Reciprocating (piston) compressors are ideal for intermittent use and lower-duty applications, delivering high pressure at a lower upfront cost. Rotary screw compressors are built for continuous duty, running cooler and quieter with steadier air delivery, which makes them the standard for shops and plants that use air throughout the day. Variable-speed (VSD) rotary screw models further cut energy costs by matching output to demand.

Do air compressors come with a warranty and shipping?

Yes. All compressors sold by A1 Compressor Warehouse include the full manufacturer warranty and genuine OEM parts. We ship nationwide across the United States, offer same-day quotes, and provide expert sizing support to help you select the right unit before you buy.

How to Size an Air Compressor: CFM, PSI & HP Explained Simply

July 23, 2026·by William Radonavitch

Sizing an air compressor sounds like it should be a simple math problem, and in some ways it is. But after years of helping businesses across the Carolinas and beyond pick the right equipment, we have found that the calculation is rarely the part that trips people up. It is everything around the calculation that gets overlooked, and that oversight is what leads to compressors that either struggle to keep up or sit there working far below their capacity for years at a time.

If you are trying to figure out what size compressor your operation actually needs, this guide walks through the full picture, not just the CFM formula you will find on a dozen other sites.

The Two Ways Businesses Get Sizing Wrong

Undersizing is by far the more common mistake, and it usually happens for an understandable reason. A business is trying to be cost conscious up front, so they buy the smaller unit and plan to grow into it later. The problem is that a compressor running constantly under load wears out faster, runs hotter, and ends up costing more in maintenance and downtime than the money saved at purchase.

Oversizing happens too, though less often, and it is a quieter kind of mistake. A customer buys more horsepower than their application will ever really use. It will not damage the equipment, but it does mean a larger up front investment than the application actually calls for, along with higher electrical draw and often a bigger footprint than necessary. Getting the size right in both directions, not just avoiding the obvious shortfall, is what actually saves money over the life of the equipment.

Start With the Application, Not the Compressor

Before any CFM number matters, you need to understand what is actually being powered and how it is being used. An auto shop running impact wrenches and spray guns has a very different air demand profile than a manufacturing floor running lifts or heavier pneumatic equipment. Tools that fire in short bursts pull air differently than equipment that runs continuously, and that distinction changes what kind of compressor and tank setup makes sense.

This is also where the type of compressor comes into play. If you have not already, it is worth reading our breakdown of reciprocating compressors and why they remain a solid choice for many shops, since the right type is just as important as the right size.

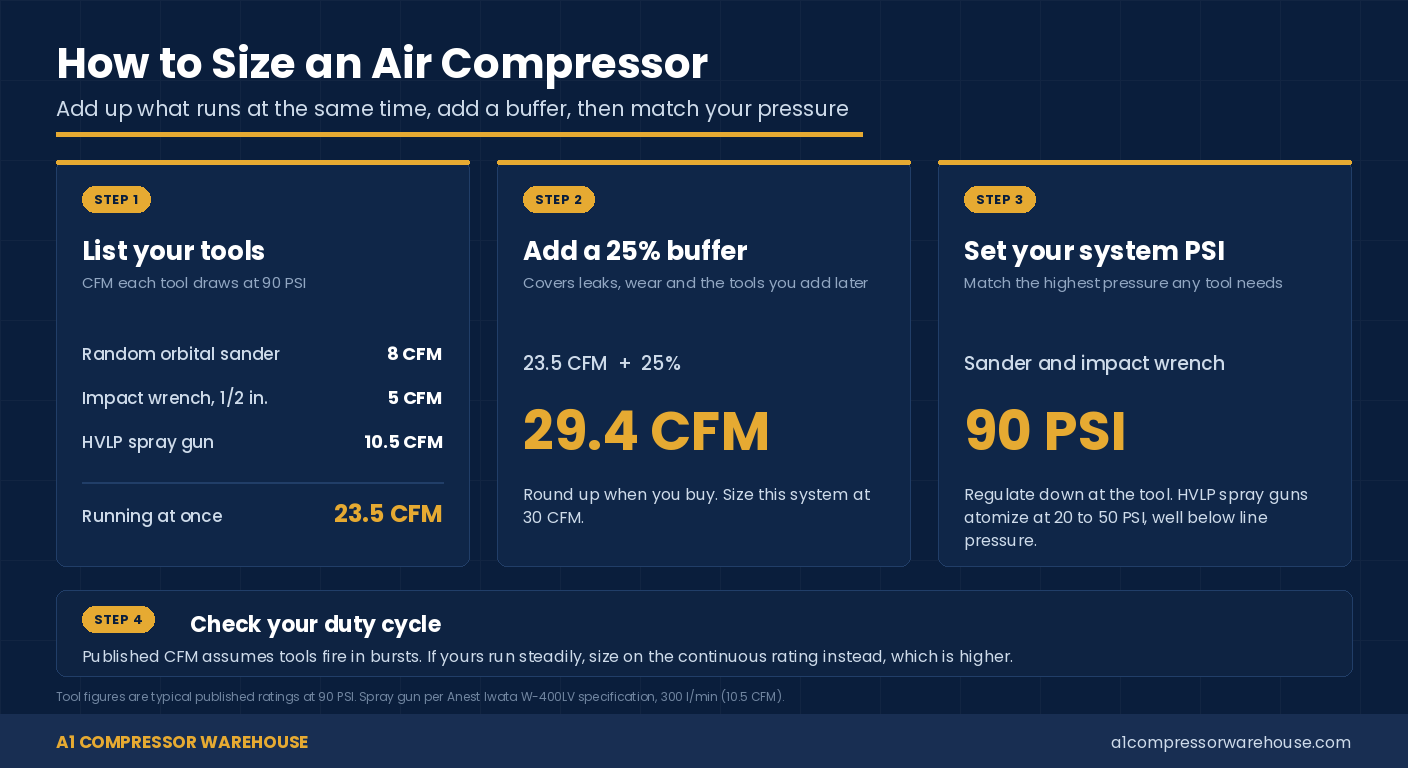

The Formula: CFM, PSI, and HP Explained

Once you know your application, the math becomes far more approachable. Start by listing every tool or piece of equipment that will run on the system and note its CFM requirement at the PSI it needs to operate. If several tools could realistically run at the same time, add those CFM numbers together rather than relying on your single highest demand tool.

From there, build in a buffer. A common approach is to take your total CFM demand and add roughly twenty five percent on top of it. That buffer accounts for normal wear, future growth, and the reality that most facilities end up adding tools and equipment over time rather than removing them. Horsepower follows from CFM and PSI together, so once those two numbers are settled, the right HP range for your compressor becomes much clearer.

What Most People Forget: Electrical and Physical Space

CFM and HP get most of the attention, but they are only part of what determines the right compressor for a given space. Certain applications require three phase power, and if your facility is not already wired for it, that changes both the equipment options available to you and the cost of installation. Physical space matters just as much. Some facilities do not have room for a standard horizontal tank setup and need a vertical tank instead simply to fit the footprint they have available.

These are not small details. We regularly work with customers who had the CFM and HP numbers figured out correctly, only to find out partway through the process that their electrical setup or available floor space required a different configuration than what they originally planned for. Sorting this out early saves a lot of frustration later.

Do Not Forget to Size Your Dryer and Tank, Too

A compressor does not operate in isolation, and the rest of the system needs to be sized to match it, not treated as an afterthought. Air dryers and tanks both carry their own CFM and capacity ratings, and pairing an undersized dryer with a properly sized compressor will bottleneck the whole system just as badly as undersizing the compressor itself. We break the dryer side down in full in Air Dryers 101: how to size and match a dryer to your compressor, including the NPT, ambient temperature, and dew point details that decide the model. If you are exploring dryer and tank options as part of a new system, our partners at EL-AV offer a full range built to scale alongside their compressors, which makes matching capacities across the system considerably easier.

The Hidden Variable: Your Piping

Warehouse compressed air piping system running from a compressor across a large facility

One of the most overlooked factors in sizing has nothing to do with the compressor itself. It is the piping that carries the air across your facility. If you are running air across a large warehouse or plant, the length and number of joints in that piping matters, even if the number of tools you are powering is relatively modest. Piping, and especially the joints within it, is prone to developing leaks over time, and every leak adds continuous load to your compressor that was never part of the original calculation.

We saw this play out recently with a logistics company running a 15 horsepower compressor piped across a large facility to more than thirty air tools. On paper, the compressor was sized reasonably for the tool count. In practice, leaks throughout the piping run kept the compressor under load for a significant portion of the day, well beyond what the tools alone would have required, which drove up maintenance needs faster than expected. It was a clear reminder that sizing the compressor correctly only solves part of the equation. The piping system carrying that air has to be accounted for as well, both in initial design and in ongoing maintenance.

Do Not Assume Your Old Brand Is Still Your Best Option

One habit we consistently encourage customers to break is defaulting to the same compressor brand they have always used simply out of familiarity. Compressed air technology has moved forward significantly, and the brand that served a business well a decade ago is not automatically the best fit for that same business today. We always recommend reviewing a few different options rather than assuming the familiar choice is still the right one, particularly given how much the buying landscape has shifted in recent years. Our guide on navigating compressor purchases in the current tariff environment covers this in more detail and is worth a look before you commit to a purchase.

Get It Sized Right the First Time

Sizing an air compressor properly means looking past the CFM and HP numbers alone. It means understanding your application, planning for your electrical and physical space, matching your dryer and tank to your compressor, and accounting for the piping that will carry that air across your facility. Get all of these pieces right together, and you end up with a system that runs efficiently for years rather than one that is constantly working harder than it should.

If you are working through a sizing decision and want a second set of eyes on it, contact our team at A1 Compressor Warehouse. We are happy to walk through your application with you and help you land on the right setup the first time.
