Ensuring Peak Performance with Anest Iwata Tip Seal

The tip seal is a primary wear part in Anest Iwata scroll compressors and vacuum pumps. Its replacement interval depends on the model and pressure rating; we cover the SLT manual schedule below.

What Is a Tip Seal?

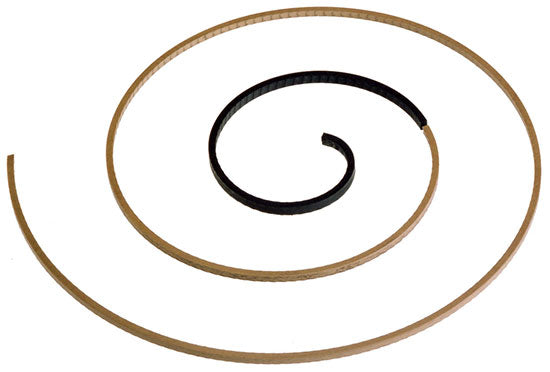

A tip seal is a precision strip fitted into the tip of the spiral element (scroll) in a scroll compressor or vacuum pump. Its primary function is to create a seal between the orbiting scroll and the fixed scroll plate, preventing compressed air from bypassing back to the inlet. This seal is what allows the scroll to build and maintain pressure efficiently. Without it working properly, the compressor loses capacity, runs hotter, and consumes more energy to achieve the same output.

Why Tip Seal Replacement Is Critical

Tip seals are designed wear parts that need scheduled replacement. For SLT-2, SLT-3, SLT-5 and SLT-10D compressors, the Anest Iwata manual calls for tip and dust seals every 10,000 hours or 4 years on 115 psi models, and every 2,500 hours or yearly on 145 psi models, whichever comes first. Heat or severe duty can shorten those intervals, so confirm the schedule by model for other units. Many technicians recommend pairing seal replacement with a general service inspection for Anest Iwata vacuum pumps as well. Running past the correct interval leads to:

• Gradual loss of pressure output and flow rate
• Increased motor temperature and energy consumption
• Accelerated wear on the scroll elements themselves — a far more expensive repair
• Eventual compressor failure if ignored long enough

The cost of a tip seal is a fraction of the cost of scroll element replacement, making this one of the highest-ROI maintenance actions in compressed air. For broader guidance on sourcing compressor maintenance parts, our guide covers everything from part number identification to OEM vs. aftermarket decisions.

OEM vs. Aftermarket Tip Seals

Use the tip seal kit specified for your Anest Iwata model. It must match the scroll geometry to seal correctly, and an incorrect seal can cause uneven wear on the scroll face. Send us your model and serial number, and we can confirm the correct OEM kit. Anest Iwata sets warranty terms. Manufacturer warranties generally exclude non-OEM consumables and expect documented maintenance; we can confirm coverage for your exact product. Check those terms before changing parts.

Tip Seals for the Full Anest Iwata Lineup

Tip seal part numbers vary by model series. Send us your model and serial number, and we will confirm the correct seal kit and check availability. For the broader Anest Iwata product lineup, we can help you identify the right maintenance items for your unit. Contact our team to order or ask about your maintenance schedule.
