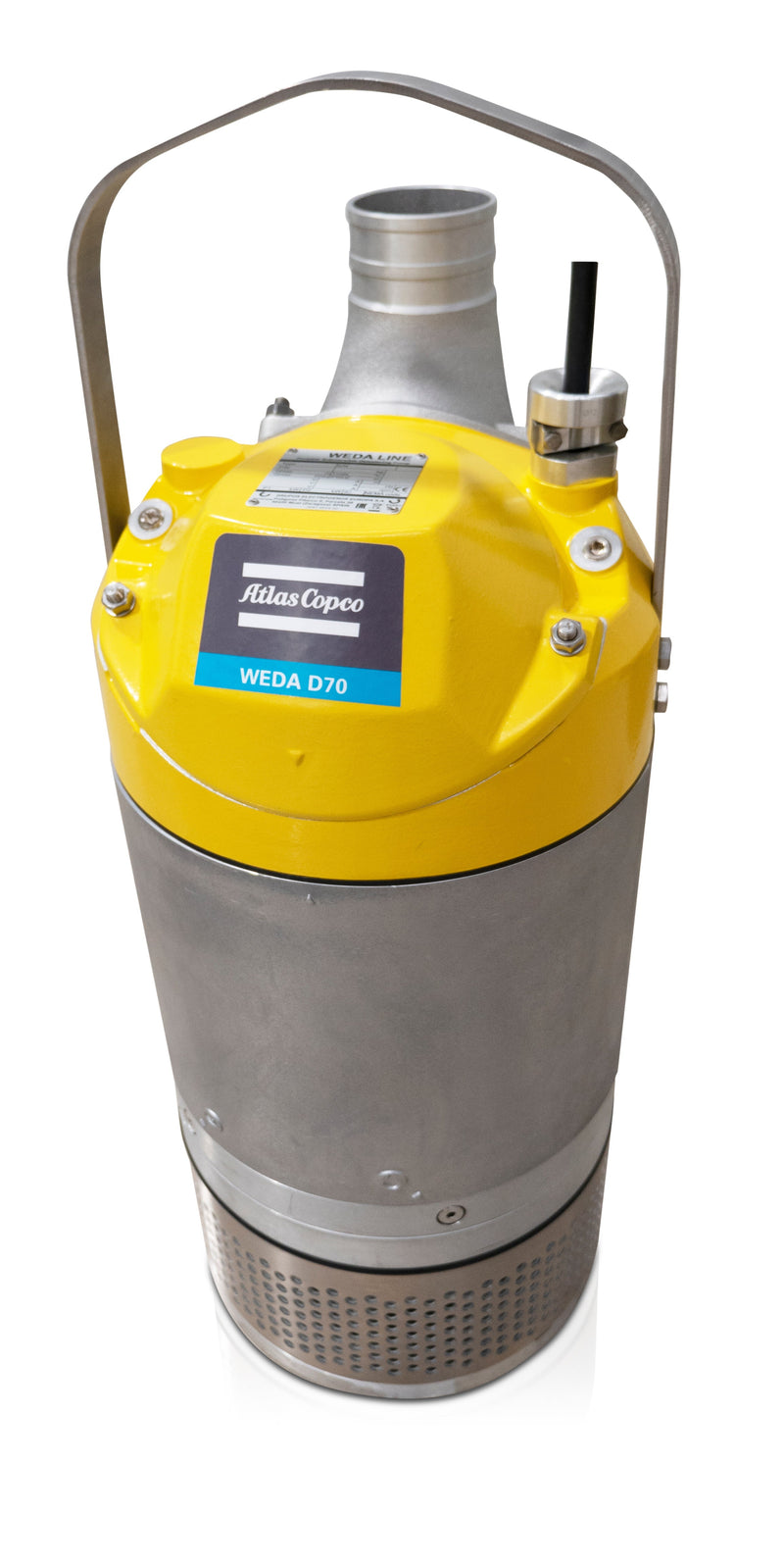

Atlas Copco WEDA D70L Submersible Dewatering Pump
Atlas CopcoModel #: WEDA D70L

Atlas Copco WEDA D70L Submersible Dewatering Pump

HP18CFM1230 gpm
$11,856.50
SKU 3081620944
Preferred for freight or configured items
Financing available — learn more
  • Ships in 24 hrs
  • Authorized dealer
  • Service support

The Atlas Copco WEDA D70L is the low-head, high-flow version of the 18 HP WEDA D70 family. 6" NPT discharge for moving large volumes of water on flood-recovery, pond, and large-site dewatering work.

Key Features

  • 18 HP submersible motor — oil-filled, IP68
  • 1230 GPM max flow / 129 ft max head
  • 6" NPT discharge connection
  • 0.39" max solid pass-through — handles trash water
  • Hardened impeller and stainless-steel wear plate
  • Stainless-steel handle, double mechanical seal
  • CSA / UL listed for North American use
  • Multiple voltage options — see variants below

Ideal Applications

  • Construction site dewatering
  • Mining and tunneling water removal
  • Flood and basement pump-out
  • Wellpoint and pond transfer
  • Industrial sump and process water

Specifications

Model WEDA D70L
Impeller / Head Class low-head / high-flow
Horsepower 18 HP
Max Flow 1230 gpm
Max Head 129 ft
Shaft Speed 3500 rpm
Rated Output 13.4 kW
Max Power Input 15 kW
Discharge 6" NPT
Max Solids 0.39"
Weight 244 lb
Height 37.1 in
Diameter 14.6 in
Warranty 12 months from start-up / 18 months from receipt (whichever comes first)
Country of Origin Sweden / China assembly
