Schulz of America
SchulzModel #: SACT2500-UR

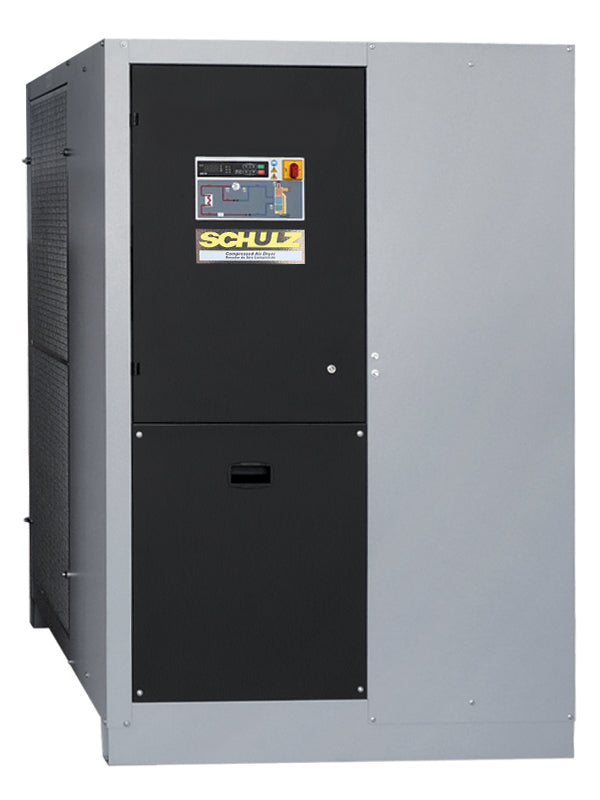

Schulz SACT2500-UR High-Capacity Refrigerated Air Dryer (2500 SCFM)

CFM2500 SCFMPhase460V/3/60
Contact For Price Quote
SKU SACT2500-UR
Preferred for freight or configured items
  • Ships in 24 hrs
  • Authorized dealer
  • Service support

The Schulz SACT2500-UR is a high-capacity refrigerated air dryer rated for 2500 SCFM, built with the SACT (Aluminium Cooling Technology) heat exchanger that delivers reduced energy consumption and constant pressure dew point under varying load conditions.

SACT Aluminium Cooling Technology

  • Low power consumption — ALU-DRY heat exchanger paired with high-efficiency refrigeration compressor and innovative hot-gas bypass valve.
  • Zero-loss condensate drain — no compressed air wasted during draining.
  • Constant pressure dew point with differing load conditions.
  • DMC 24 Digital Controller — programmed management of maintenance operations.
  • Tropicalised air condenser — operates in elevated ambient temperatures.
  • Functionally stable at maximum conditions — inlet air to 160°F, ambient to 120°F.

Specifications

Model / Schulz Code SACT2500-UR
Type High-Capacity Refrigerated Air Dryer
Flow Capacity 2500 SCFM
Inlet/Outlet Connection Flg ANSI 4"
Voltage / Phase / Hz 460V/3/60
Refrigerant R407C
Drain Type Zero-loss (BM)
Maximum Inlet Air Temp 160°F
Maximum Ambient Temp 120°F
Dimensions (A x B x C) 49-13/16 x 44-11/16 x 68-7/8 in
Weight 1466 lb
Country of Origin Brazil
