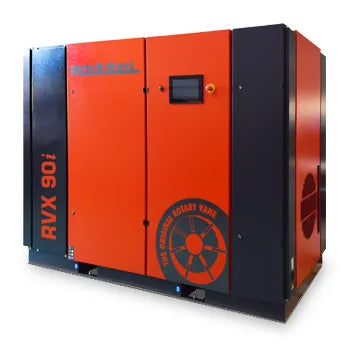

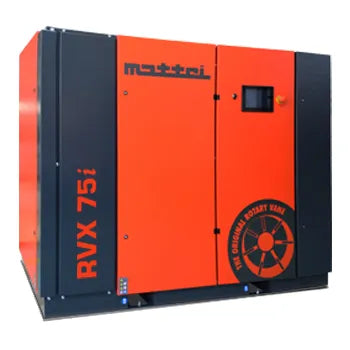

Mattei RVX i 55 / 75 / 90 Variable-Speed (VSD) Rotary Vane Compressor (75–125 HP)
HP75CFM189PSI145PhaseThree-Phase
$102,576.55
SKU
1400000314
- Ships in 24 hrs
- Authorized dealer
- Service support
Mattei rotary vane technology is the gold standard for continuous-duty industrial compressed air. With a single moving rotor (no contact between vanes and stator), Mattei compressors typically deliver 80,000+ hours to first overhaul — three to four times the service life of a comparable rotary screw machine, with lower vibration, quieter operation, and steadier flow.
The Mattei RVX i 55 / 75 / 90 Series is the inverter-driven, variable-speed flagship of Mattei's RVX premium-efficiency platform. The inverter continuously varies motor speed to match air demand, achieving up to 35% annual energy savings. Patented XTREME Injection Technology + XTREME Thermal Management + 10-inch Maestro XC touchscreen + Cloud-based IoT analytics. Choose Base, Heat Recovery, or Water-Cooled version.
Specifications
| Power | 75 / 100 / 125 HP (55 / 75 / 90 kW) |
| Flow @ 102–145 PSI | 184–364 / 231–457 / 296–584 ACFM |
| Power Supply | 460V / 60 Hz / 3-Phase |
| Drive | Direct drive with inverter (VSD) |
| Dimensions | 95 × 49 × 75 in |
| Weight | 3,902–4,409 lb (depends on version) |
| Sound Level | 68 dB(A) at 1500 rpm |
| Air Outlet | Rp 2 in |
| Motor | IE3 (55i) / IE4 (75i, 90i) |
| Control | MAESTRO XC 10" touchscreen with Cloud connectivity |
| Energy Savings | Up to 35% vs fixed-speed |
| Country of Origin | Italy |
Optional Upgrades (Field-Installed)
These factory-supported options can be added to your order — call us to configure.
| Upgrade | Mattei Code | Add to Price |
|---|---|---|
| Ultra-Premium IE4 motor (RVX 55i) | XVKL016 | $1406 |
| Heaters kit (factory) | XVKH002 | $2519 |
| Oil quality sensor kit (factory) | XVKI002 | $3914 |
| V-Life Xtreme Food lubricant (factory) | XVKG002 | $1982 |
| 4G Modem for Maestro XC (field) | 20019399 | $942 |
| Condensate drain & separator (field) | 30001681 | $991 |
| Heaters kit (field) | 30001693 | $2519 |
| Oil quality sensor kit (field) | 30006652 | $3914 |
| Cloud License | 20020090 | $333 |
Why buy from A1 Compressor Warehouse
- Authorized Mattei distributor — full factory warranty
- Free pre-purchase consultation: call us or email sales@a1compressorwarehouse.com
- Same-day response to inquiries; 24-hour order processing
- Service support and OEM Mattei maintenance kits stocked
Specifications
| Brand | Mattei |
|---|---|
| Model # | 1400000314 |
| Mfr Part # | 1400000314 |
| Horsepower | 75 HP |
| CFM | 189 |
| Max Pressure | 145 PSI |
| Voltage | 460V |
| Phase | Three-Phase |
| Noise | 68 dB(A) at 1500 rpm |
| Weight | 3,902–4,409 lb (depends on version) |
| Dimensions | 95 × 49 × 75 in |
| Country of Origin | Italy |
Shipping & Returns
We process most orders within one business day. Freight items ship by motor carrier — we'll coordinate delivery for residential and limited-access addresses.
- Nationwide shipping. Call (803) 693-2350 for a freight quote on large equipment.
- All sales final. Please confirm fitment, specifications, and compatibility before ordering — contact us if you need a sizing consult.
- Manufacturer warranty applies — see spec sheet or contact us with your serial number.
