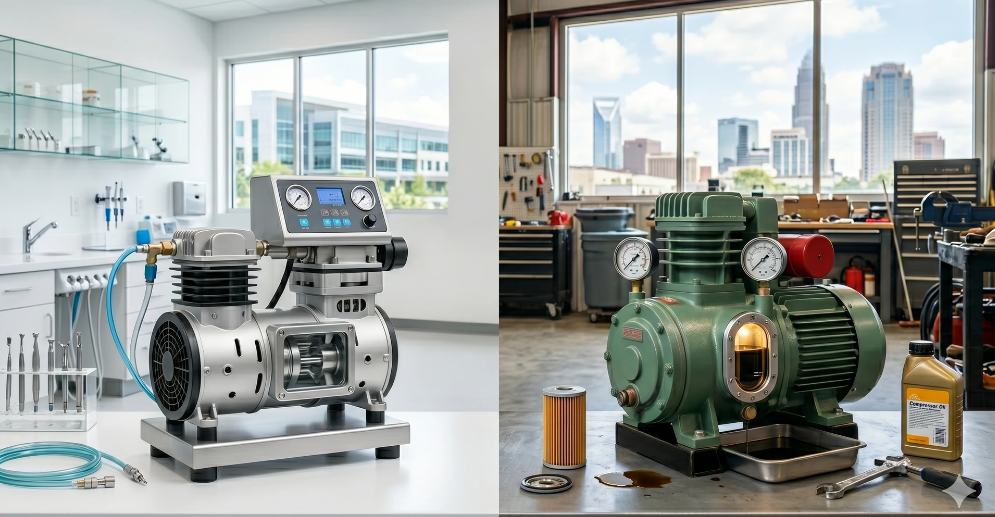

Oil-Free vs. Oil-Lubricated Air Compressors: When Does It Matter?
Choose oil-free or oil-lubricated compression based on what your air touches and how clean it must be. Oil-free equipment keeps lubricant out of the compression chamber, while an oil-lubricated system may fit when treatment and filtration meet the process requirements.
What Is an Oil-Lubricated Air Compressor?
An oil-lubricated air compressor uses oil inside the compression chamber to lubricate moving parts — pistons, rotors, or vanes — that compress the air. This reduces friction, dissipates heat, and creates an internal seal that allows the compressor to run at higher pressures and duty cycles.
Most rotary screw compressors, rotary vane compressors, and traditional piston compressors are oil-lubricated. They're the workhorses of industrial compressed air — reliable, efficient, and built for heavy, continuous use. Reciprocating piston compressors, for example, are almost always oil-lubricated at the industrial level and represent one of the most cost-effective options for intermittent-duty applications.
- Oil is injected into the compression element to cool, lubricate, and seal
- Compressed air passes through an oil separator and filter before delivery
- Residual oil content in delivered air is typically 1–5 ppm after separation
- Require regular oil changes and separator maintenance
- Generally lower upfront cost and longer service life than equivalent oil-free units
What Is an Oil-Free Air Compressor?
An oil-free air compressor compresses air without any oil in the compression chamber. Instead, the compression elements use alternative materials — PTFE-coated pistons, water injection, or precision-machined tolerances — to operate without lubrication. The result is truly oil-free compressed air at the point of delivery, with no risk of oil carryover contaminating downstream equipment or products.
- No oil in the compression chamber, so no compressor oil carryover; air still needs proper drying and filtration
- ISO 8573-1 Class 0 air purity is available on top-tier models when specified and tested
- Higher upfront cost than equivalent oil-lubricated units
- Generally shorter service life on compression elements
- Often specified by customer, audit or process requirements in food, pharmaceutical, electronics and medical applications
Oil-Free vs. Oil-Lubricated: Side-by-Side Comparison
| Factor | Oil-Lubricated | Oil-Free |
|---|---|---|
| Air Purity | Residual oil (1–5 ppm after filtration) | Zero oil carryover |
| Upfront Cost | Lower | Higher |
| Maintenance | Oil changes, separator service | No oil changes; more frequent element service |
| Lifespan | Longer (with proper maintenance) | Shorter compression element life |
| Duty Cycle | 100% continuous on most screw/vane models | Varies; many oil-free models are intermittent duty |
| Best For | Manufacturing, auto shops, construction, general industrial | Food & beverage, pharma, medical, dental, electronics |
| Regulatory Compliance | Not suitable for Class 0 requirements | Required for ISO 8573-1 Class 0 |
When Does Oil-Free Actually Matter?
Most industrial applications — auto shops, manufacturing plants, construction sites, woodworking facilities — can run perfectly well on a properly filtered oil-lubricated compressor. A good coalescing filter and desiccant dryer will bring oil content well below 0.01 ppm, which is more than clean enough for the vast majority of pneumatic tools and equipment. Sizing that dryer correctly is its own exercise, and we cover it in Air Dryers 101.
Oil-free becomes essential in these specific situations:
1. Food and Beverage Processing
Any compressed air that comes into direct or indirect contact with food or food packaging falls under strict FDA and USDA guidelines. Oil contamination — even trace amounts — can compromise product safety and trigger costly recalls. Oil-free compressors are one option for food manufacturing, bottling, packaging and dairy operations when oil control matters. For a full breakdown of compliance requirements, see our guide to choosing between different types of food compressors.
2. Pharmaceutical and Medical Manufacturing
Drug manufacturing, sterile filling lines and medical device production often specify strict ISO 8573-1 air quality, sometimes Class 1 or Class 0. Oil contamination can compromise a batch or sterile packaging, so oil-free compression is the usual way to meet a stringent oil limit. The class and validation depend on your process or customer specification; confirm yours before choosing the air source.
3. Dental and Healthcare Settings
Dental air compressors deliver air directly into patients' mouths. Oil contamination isn't just a regulatory problem — it's a patient safety problem. Oil-free scroll and piston compressors from manufacturers like Anest Iwata are used in clinical settings where air purity matters. Our guide to Anest Iwata's oil-free scroll compressors breaks down real maintenance intervals and current pricing for these models.
4. Electronics and Semiconductor Manufacturing
PCB assembly, wafer fabrication, and precision electronics require compressed air that won't leave any residue on sensitive components. Even sub-ppm oil levels can cause adhesion failures, contaminate clean rooms, or damage optical equipment.
5. Spray Painting and Automotive Finishing
Auto body shops use compressed air for spray guns, and oil contamination in the air line causes fisheye defects, poor adhesion, and ruined paint jobs. High-volume finishing operations often prefer oil-free compressors to keep compressor oil out of the air line, though a dryer and filtration still matter. This is one reason to consider Anest Iwata's oil-free compressors for painting equipment. Their scroll compressors pair well with their HVLP spray guns.
When Oil-Lubricated Is the Better Choice
For the majority of industrial applications, oil-lubricated compressors deliver better value:
- General manufacturing: Impact wrenches, grinders, air cylinders, conveyors, and most industrial pneumatic equipment run fine on properly filtered oil-lubricated air.
- Auto repair shops: Tire inflation, impact tools, lifts, and air-powered equipment in a standard repair bay don't require oil-free air. A well-maintained rotary screw or piston compressor with standard filtration handles this reliably for years.
- Construction and contractors: Nail guns, jackhammers, sandblasters, and framing tools are designed for standard compressed air. Oil-free units at contractor scale are typically more expensive and less durable than their oil-lubricated equivalents.
- High-duty-cycle industrial operations: If your compressor runs 8+ hours a day continuously, oil-lubricated rotary screw and vane compressors are purpose-built for this. Many oil-free piston units are rated for intermittent duty only.
The "Just Add Filters" Argument — And Its Limits
A common misconception: "I'll just buy an oil-lubricated compressor and put a really good filter on it." This works in practice for most applications, but there are two important limits to understand.
Filtration can reduce oil carryover to well under 0.01 ppm — far below any practical concern for general industrial use. For quality-sensitive applications like spray painting, a quality coalescing filter and regular element replacement handles it adequately.
Class 0 is stricter than Class 1, with the limit set by agreement between you and the supplier and proven by testing at a stated point. An oil-lubricated compressor with downstream filtration can reach very low oil content. If your customer or audit requires Class 0 documentation, oil-free equipment is the straightforward route.
A Note on Current Compressor Pricing
Oil-free compressors typically carry a higher upfront cost than oil-lubricated equivalents. Tariff rules have changed several times since 2025 and can move equipment prices, as of October 2026. If you are comparing machines, ask for a current quote and read our guide to compressor buying in the tariff era.
How to Decide: A Simple Framework
Ask yourself these three questions:
-
Does my application have a regulatory or certification requirement for oil-free air?
If yes (food, pharma, medical, dental, electronics) → oil-free, full stop. -
Does oil contamination create a quality or product safety risk?
If yes but no hard regulation → oil-free is the safest choice; high-quality filtration on an oil-lubricated unit may be acceptable with documented testing. -
Is my application purely mechanical — tools, equipment, construction?
If yes → oil-lubricated with standard filtration is the right call. Better performance, lower cost, longer life.
Frequently Asked Questions
Can I convert an oil-lubricated compressor to oil-free?
No. The compression element design is fundamentally different. An oil-lubricated compressor cannot be converted to oil-free — they are separate product lines.
How much more do oil-free compressors cost?
At equivalent horsepower and CFM, oil-free compressors typically cost more upfront than comparable oil-lubricated models. Scroll units in medical and dental sizes can carry a bigger premium because of their precision engineering.
Do oil-free compressors require less maintenance?
They require no oil changes or oil separator service — but the compression elements themselves typically have shorter service intervals and replacement costs can be higher. Total maintenance cost over a 10-year period is often comparable to oil-lubricated, not necessarily lower.
What does ISO 8573-1 Class 0 mean?
Class 0 is the strictest air purity classification in ISO 8573-1, and it is stricter than Class 1. You specify the limit with the supplier and prove it by testing at a stated point.
Is oil-free compressed air always cleaner?
Oil-free refers specifically to oil contamination. An oil-free compressor can still deliver air that contains water, particulates, or microorganisms if proper drying and filtration isn't installed. "Oil-free" doesn't mean "clean" in every dimension.
Which Compressor Type Fits Your Air Quality Needs?
Oil-free compressors are essential in regulated industries — food, pharma, medical, dental, and electronics — where contamination risk is real and standards are enforceable. Outside those contexts, a well-maintained oil-lubricated compressor with proper filtration delivers excellent air quality at better value and longer service life. The key is knowing which category your operation falls into before you buy — because swapping out a compressor after the fact is expensive.
Not sure which type fits your application? A1 Compressor Warehouse carries both oil-free and oil-lubricated compressors from Anest Iwata, Mattei, Schulz, Atlas Copco, and EL-AV. Contact us for a free consultation and we'll help you spec the right system for your needs.
